PET Braided Sleeve vs Split Braided Sleeving: Which One Should You Choose?
In terms of cable protection and wiring management, PET expandable braided sleeving and Split cable sleeve are widely used. Both can achieve cable protection, wire organization, and extend the service life of the cables.
However, there are significant differences in structural design, installation methods, and applicable scenarios. Choosing the wrong product will increase costs, delay the project schedule, and may also cause cable wear and make maintenance inconvenient. Below, we will analyze from the core dimensions to help with precise selection.
What is the difference of these two cable sleeves
To help you tell the real differences between regular expandable PET braided sleeve and split self-wrapping cable sleeve, we’ve compared all their key specs side by side. These specs decide how easy they install, how well they protect wires, your long-run upkeep expense and where each works best, so you can pick the right sleeve for your wiring jobs.
1.Material comparison
PET expandable braided sleeving is made of the polyester monofilament. Split cable sleeve is made of with a blend of polyester monofilaments and polyester multifilaments.

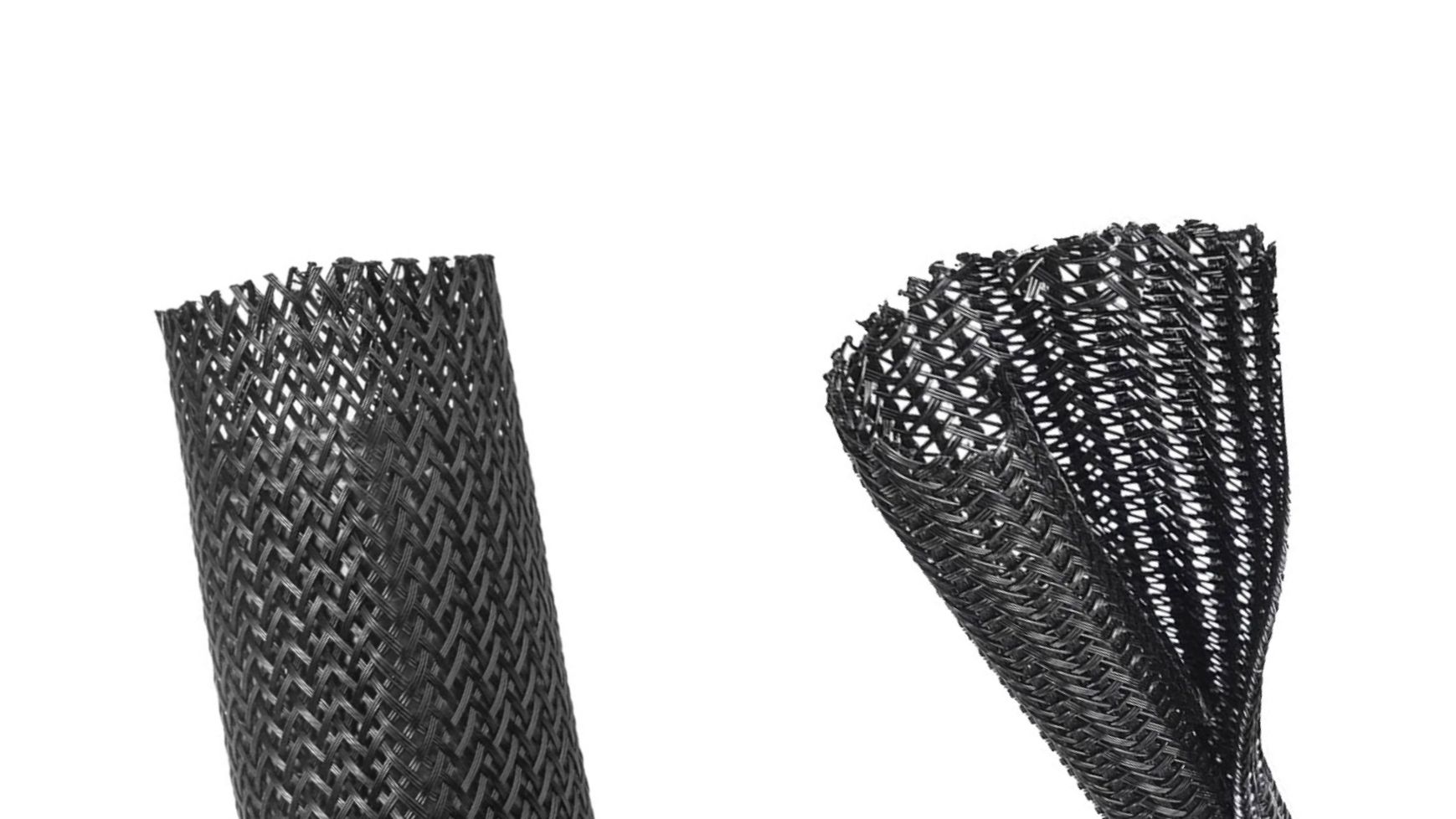

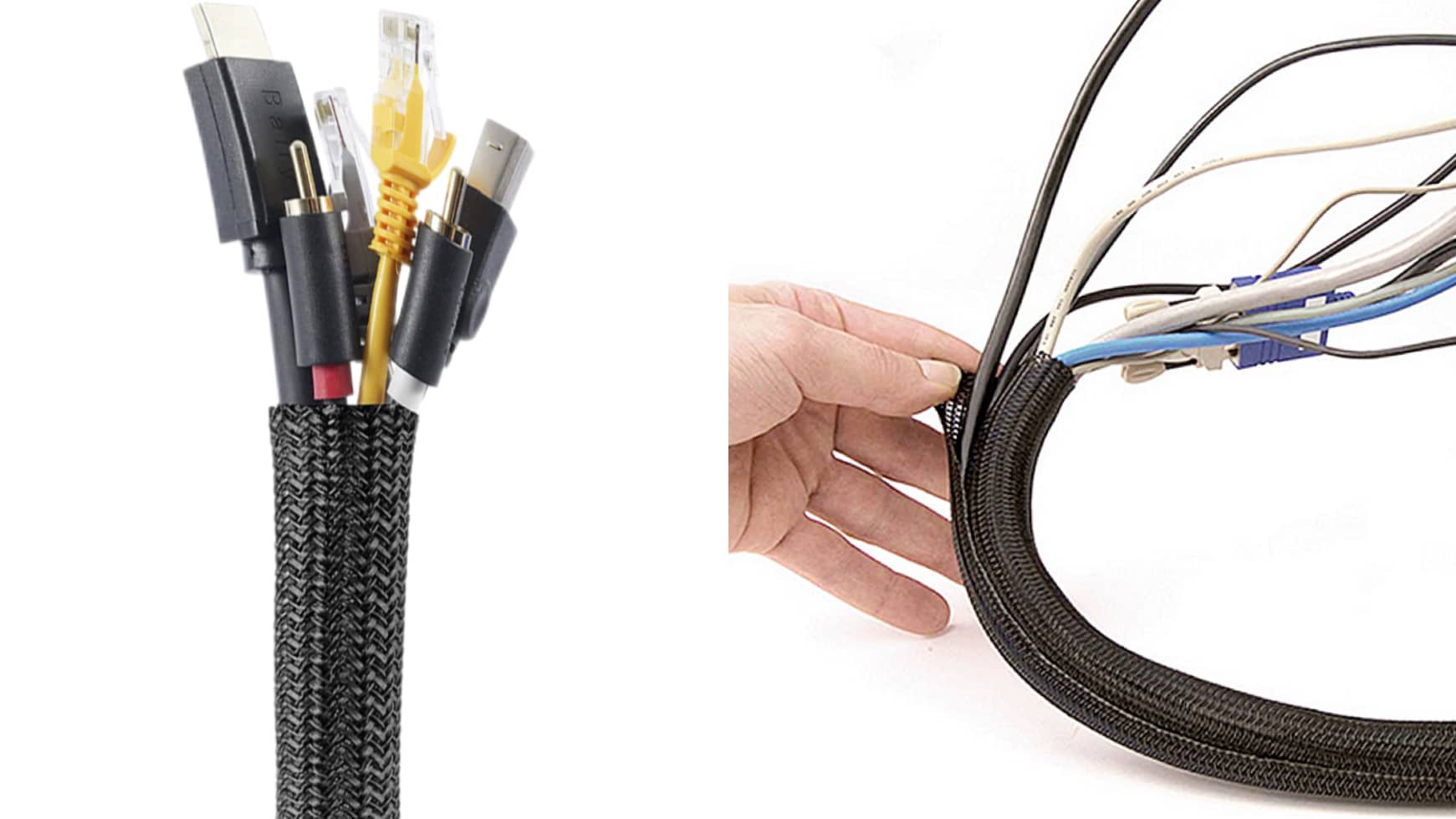

2.Structure comparison
The opening of the Split cable sleeve is designed as an open type. It has specific elasticity and can automatically close, and can be opened and closed repeatedly.

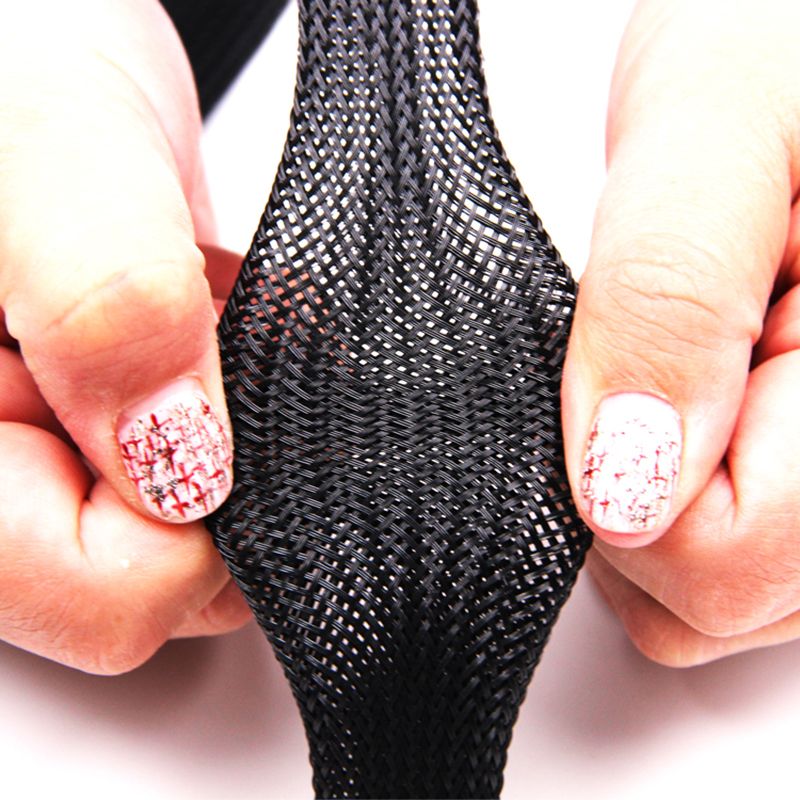

3.Flexibility comparison
Split braided sleeving does not have this characteristic. It has limited expansion capacity and requires precise matching with the diameter of the wiring harness.
4.Installation method
PET braided cable sleeve needs to be inserted from the top of the cable connector and is applicable in scenarios without wiring.It has strong elasticity and can adapt to various sizes.

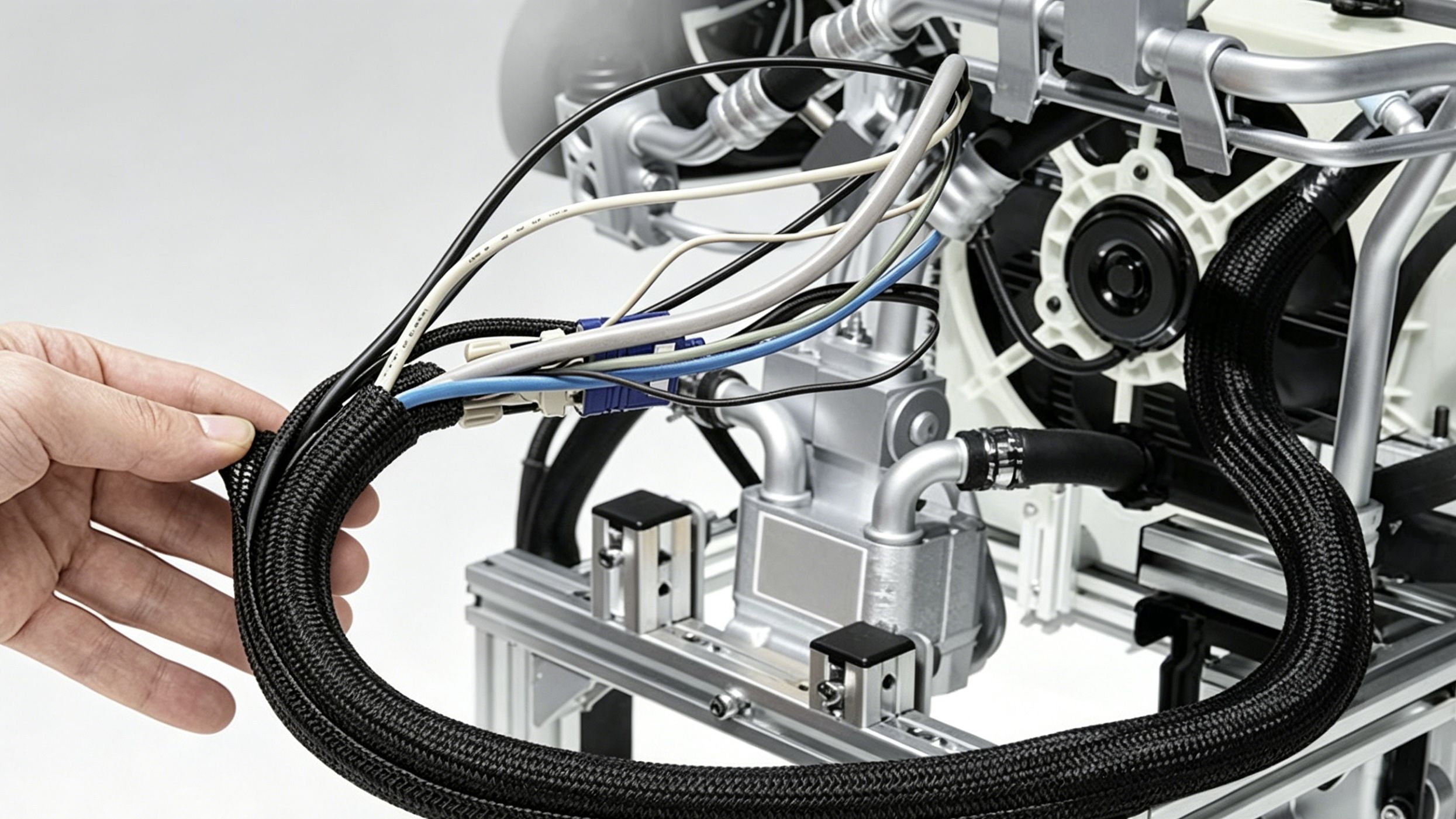

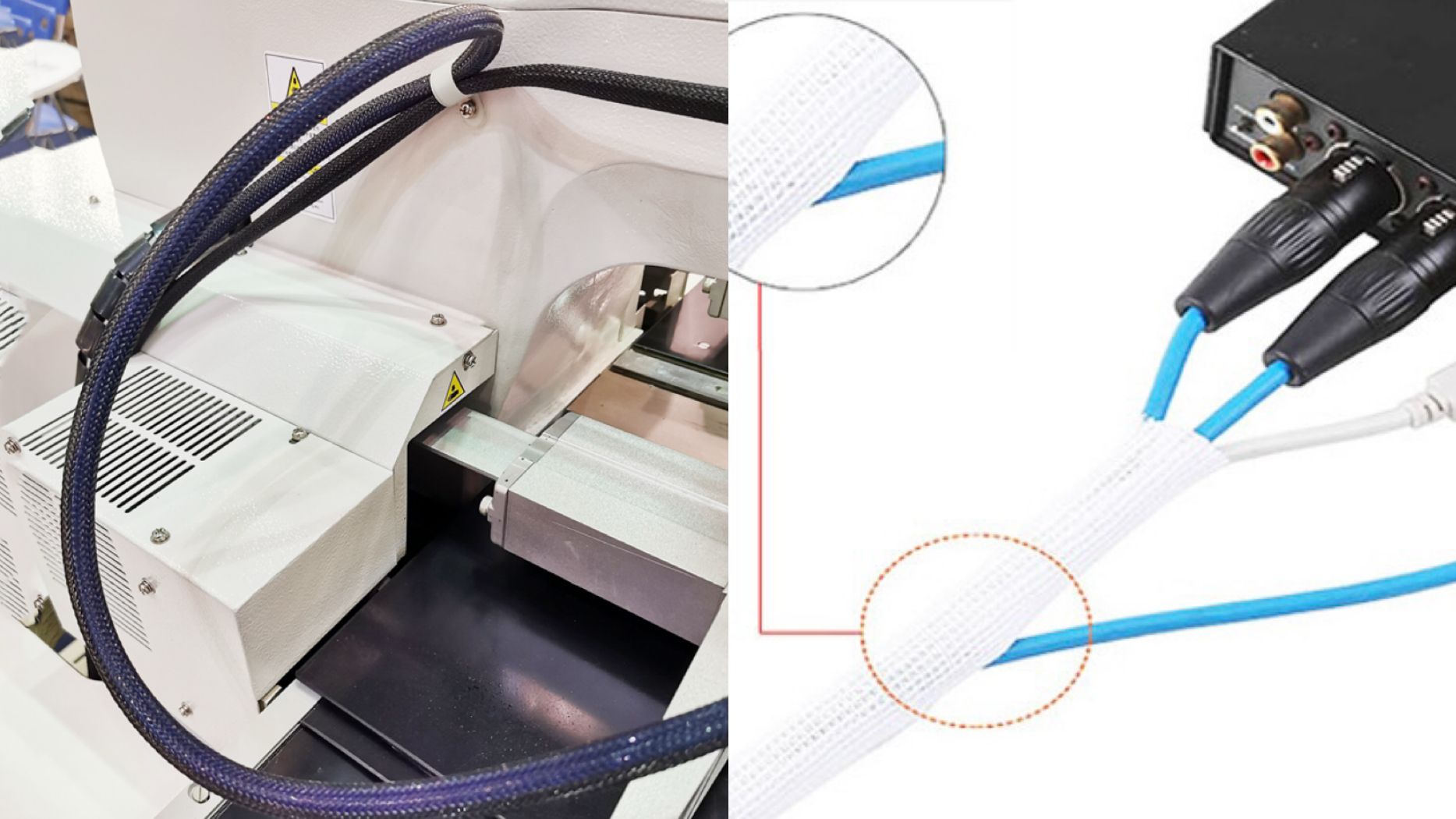

Braided split cable sleeve can inserted from the open design directly wrap the already installed cable without the need for disassembly, making the installation process efficient, resulting in high efficiency.
5.Maintenance convenience

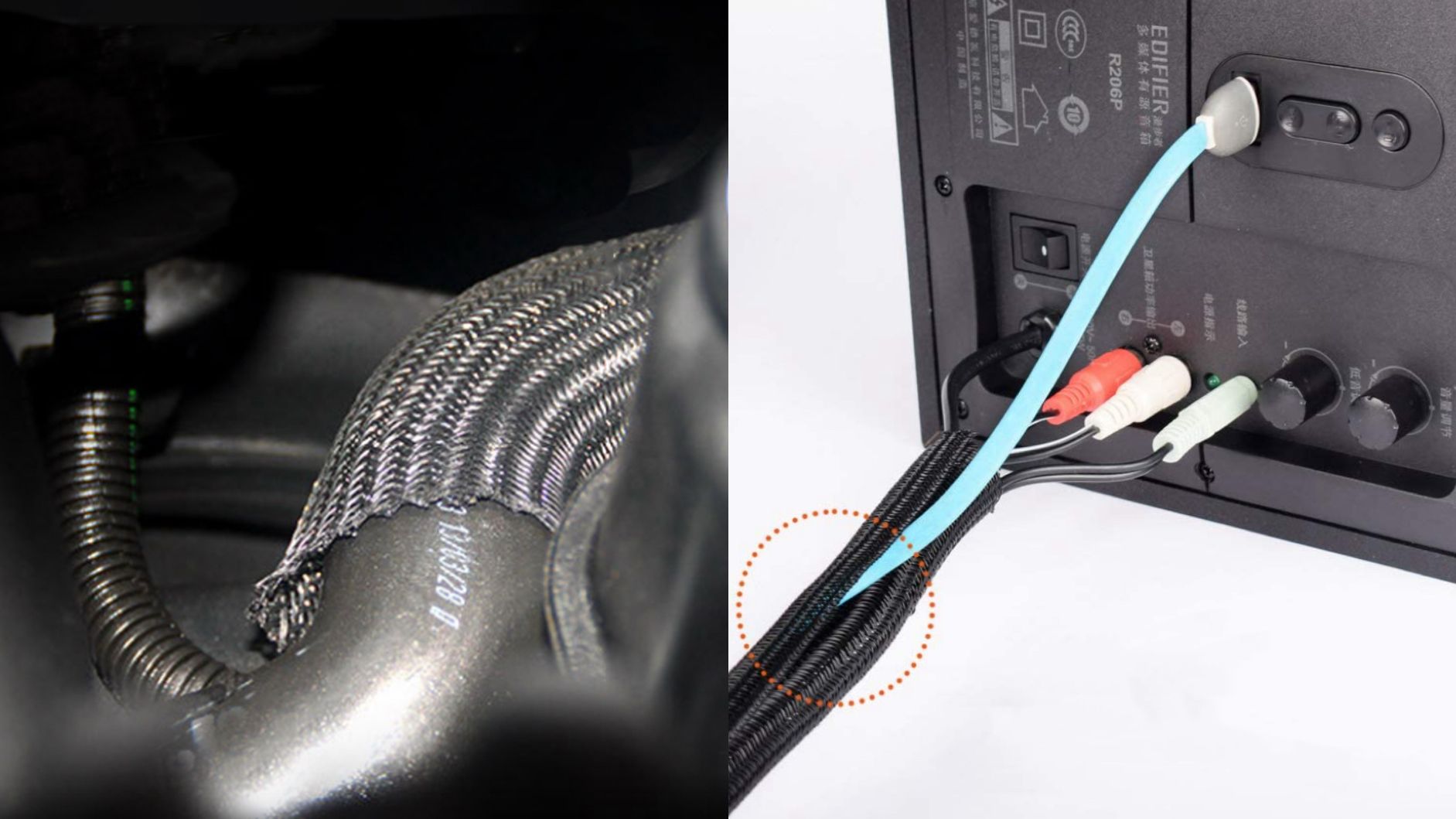

PET expandable braided sleeving is difficult to open again, and maintenance requires cutting. This will cause permanent damage to the sleeve and will require an overall replacement later on.
Split cable sleeve can be opened and closed repeatedly. This design significantly simplifies the maintenance process for the staff, and effectively enhances the overall convenience and efficiency of subsequent equipment maintenance and daily management
6.Working temperature and environmental certification
The working temperature range for both is from -50℃ to +150℃. Both of them are comply with RoHS and REACH standards and are flame resistance.
Detailed Product Selection Explanation
| Comparison Item | PET Braided Sleeve | Split Braided Sleeving |
|---|---|---|
| Material | polyester monofilament | Polyester monofilaments & polyester multifilaments |
| Structural Design | Closed | Open |
| Stretchability | Yes(up to 1.5 times) | None |
| Installation | From Top to end | From open side |
| Maintenance | Hard | Easy |
| Environmental Performance | -50℃ ~ +150℃,flame retardant | -50℃ ~ +150℃,flame retardant |
How to choose
1.Adapt to Installation & Disassembly Requirements
Distinguish wiring conditions and installation needs.
PET expandable braided sleeving is only suitable for new wiring without later modification, as it cannot be disassembled or reused after installation.

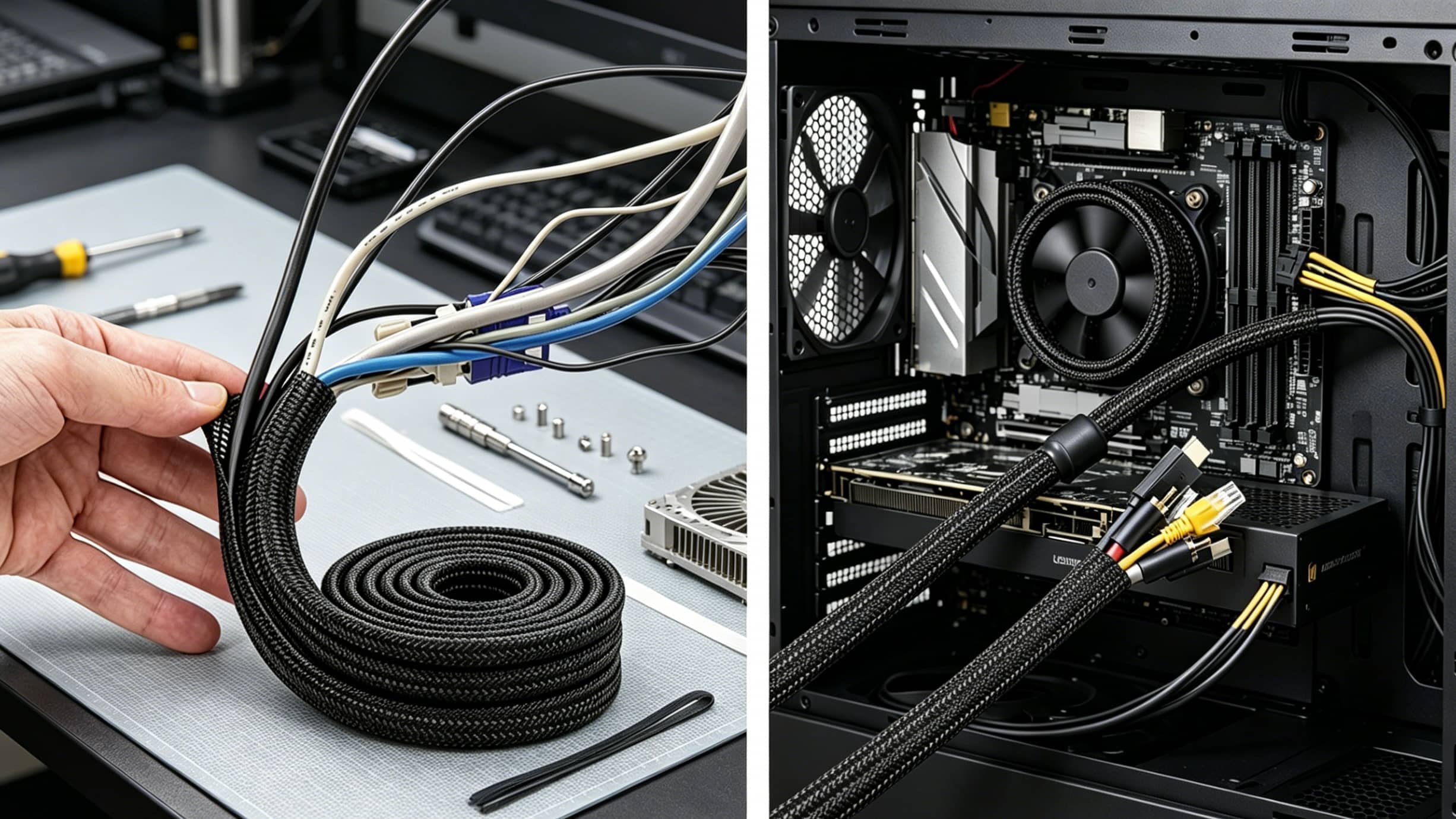

Split cable sleeve features a flexible open structure, supporting fast wrapping installation and free opening and closing. It perfectly meets users’ daily needs for line inspection, wiring change and repeated adjustment in home and vehicle scenarios.
2. Follow Actual User Demand and Budget Planning
Cost and practicality are the primary considerations for users.
If you are budget-sensitive and need one-time fixed wiring for cars or homes, the cost-effective integral PET expandable braided sleeving is the optimal choice for users who pay more attention to flexible use and later line adjustment.
Split cable sleeve is worthy of selection. Although its price is slightly higher, its reusable design can effectively reduce long-term comprehensive usage costs and better meet diversified household and vehicle wiring demands.
3.Select Based on Service Environment & Maintenance Frequency

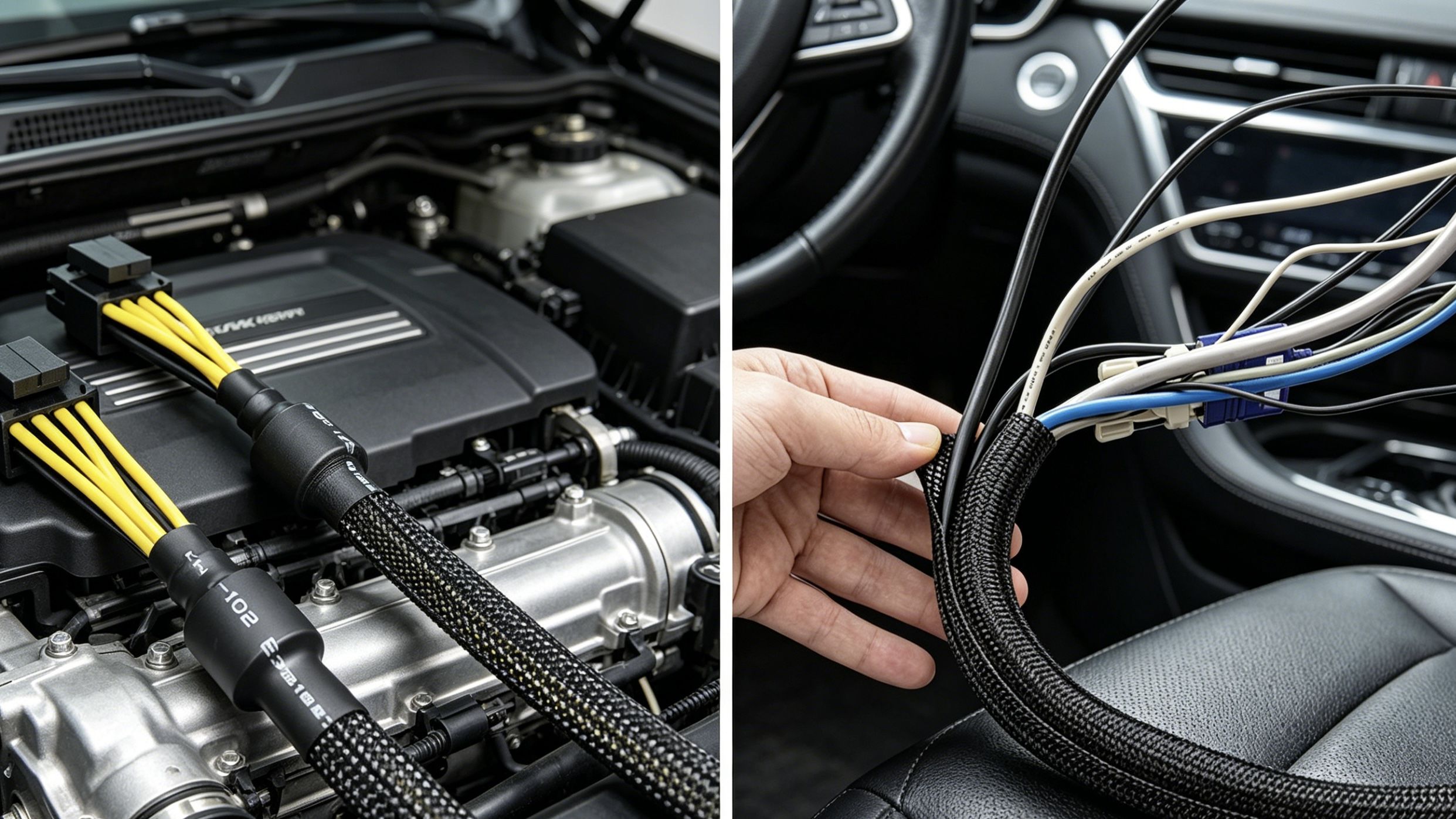

Pick the right sleeve based on your working conditions and how often you plan to do repairs. PET braided cable sleeve stands up well to abrasion. It works great for car harnesses that constantly shake and rub, perfect for permanent wiring you rarely need to service.

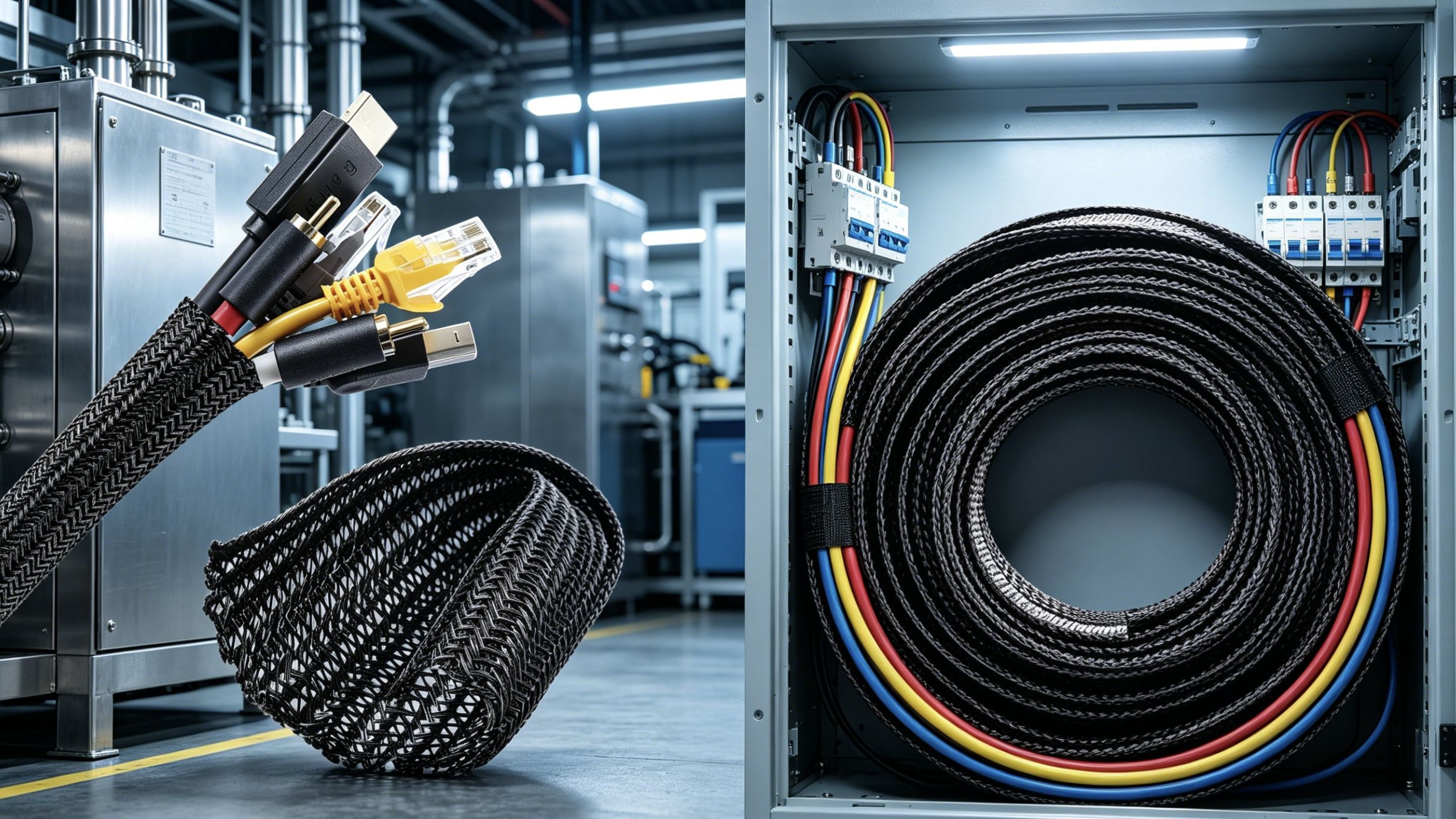

Braided split cable sleeve has solid all-around protection and suits household, and general indoor wiring that needs frequent checks. No need to cut or throw away sleeves during repairs, saving you plenty of extra replacement trouble and simplifying routine maintenance.
Conclusion
Both sleeves meet RoHS and REACH standards, are flame-resistant, and work at -50℃ to +150℃. PET braided cable sleeves are enclosed, pre-installed, low-cost, wear-resistant, suitable for new fixed wiring, but non-reusable. Braided split cable sleeves are self-closing, post-installed, reusable, easy to maintain, and ideal for adjustable wiring. Choose based on installation needs, budget, and maintenance frequency.
FAQ
Q1:Which sleeve is more cost-effective for bulk orders?
A: PET expandable braided sleeving has a cheaper unit price for bulk fixed wiring. Split cable sleeve costs a bit higher, but cuts later replacement spending.
Q2: Which one covers more wire sizes to ease inventory preparation?
A:PET expandable braided sleeving stretches up to 1.5 times for various harness diameters.Split cable sleeve needs exact size matching before ordering.
Q3:Can I mount sleeves on already finished wiring?
A: Go with a split cable sleeve, wrap wires directly without disassembly. PET expandable braided sleeving must be threaded from the cable ends for new wiring only.
Q4:Which product speeds up later circuit maintenance and wire expansion?
A: Split cable sleeve opens repeatedly without cutting. PET expandable braided sleeving has to be cut and fully replaced once opened for repair.
Q5:Do both items install without special tools?
A: Yes, no special tools needed. Split cable sleeve fits finished cables, while PET expandable braided sleeving can only be threaded on new wires.
Q6:Which choice helps lower long-term overall operating cost?
A: Split cable sleeve wins for frequent-maintenance projects thanks to reusability. Disposable PET expandable braided sleeving raises long-term maintenance costs.
Q7:How to pick correctly for long-running engineering projects?
A: Pick PET expandable braided sleeving for permanent, rarely-maintained wiring; pick Split cable sleeve if regular inspection and wire modification are required.
Q8:Can our products be customized?
A: Our colors, sizes, lengths, and packaging can all be customized.
