Application of Braided Split Wire Loom in Automotive Wiring Harness

Braided split wire loom features unique self-wrapping split structure, high toughness woven material and excellent environmental adaptability. It is widely used in automotive wiring harness protection, becoming the preferred protective accessory for automobile production, maintenance and modification.

Typical Automotive Application Scenarios

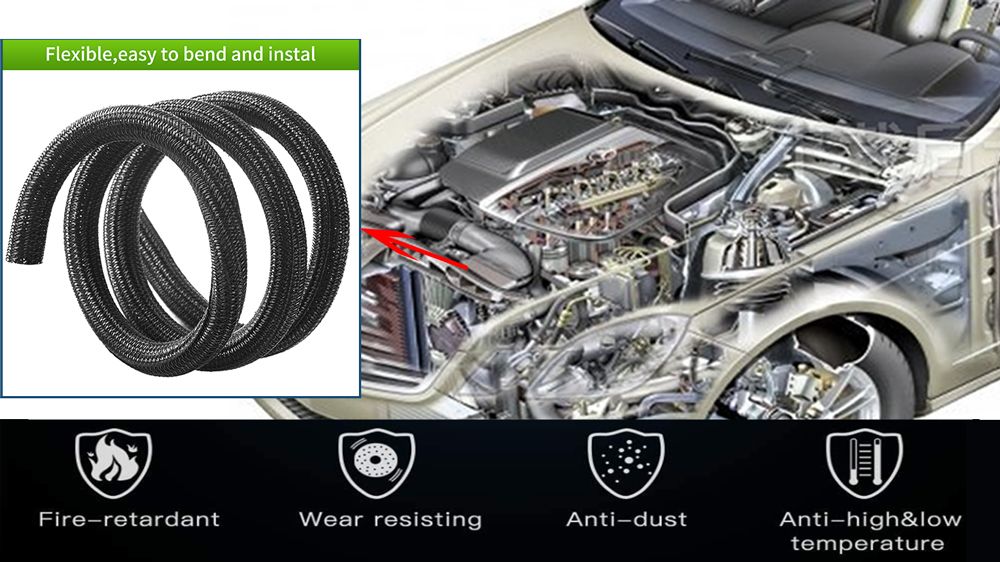

1.Engine Bay Wiring

The engine bay features high temperature, and dense mechanical structures. Braided split wire loom effectively protects high-temperature wiring harnesses, resisting heat,avoids circuit short circuits caused by wire skin damage.

2.Door and Interior Wiring

Car doors and interiors involve frequent opening, closing and bending. Braided split wire loom with super flexibility adapts to repeated bending movement, preventing wire breakage and aging at bending positions.

3.Vehicle Modification Wiring

It is perfectly suitable for modified harnesses such as car audio, ambient lighting, navigation and auxiliary electrical equipment. The flexible routing and convenient disassembly features of Braided split wire loom meet the personalized wiring and later upgrade needs of refitted vehicles.

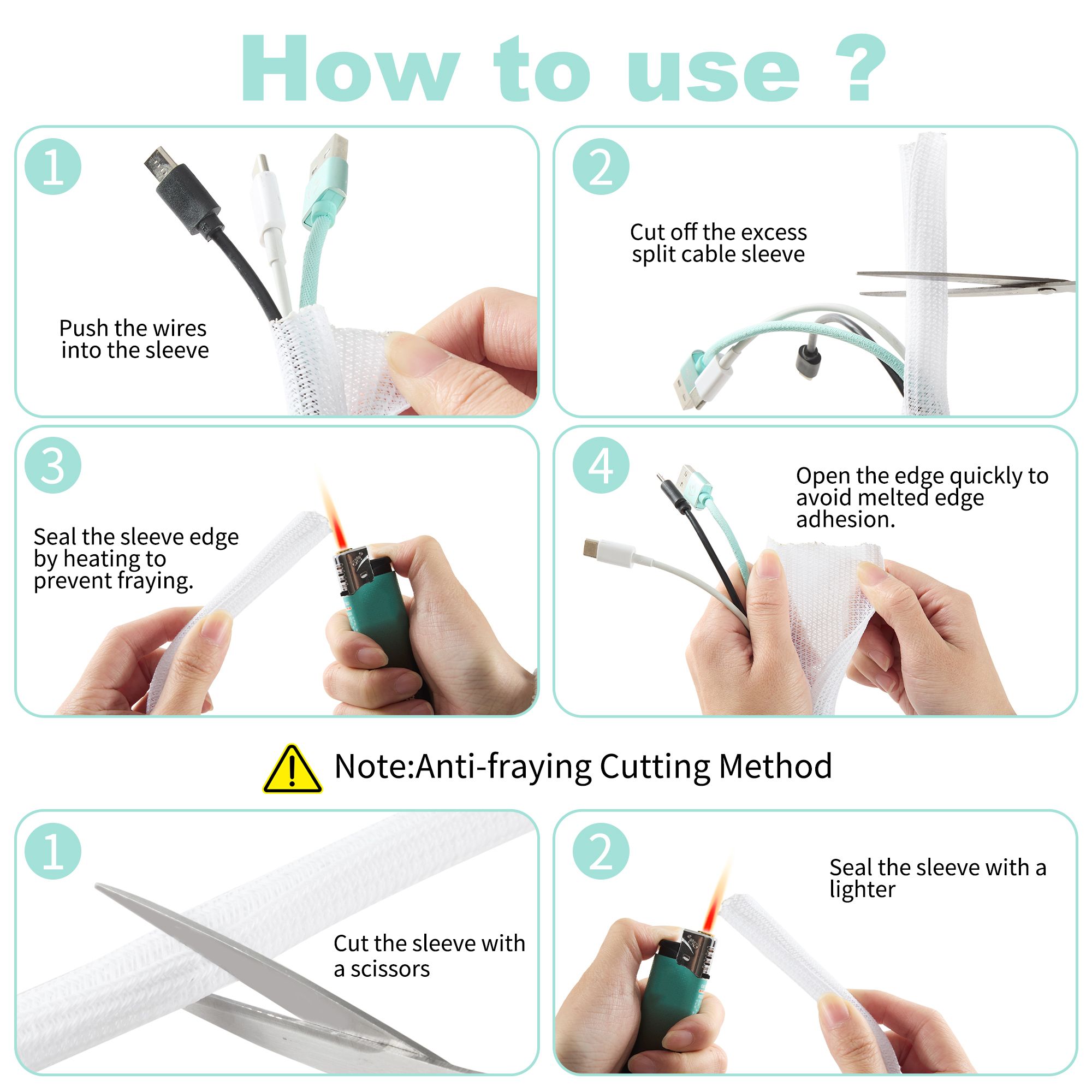

Product Installation Method

• Gently stretch open the split opening of Braided Split Wire Loom.
• Place the sorted complete automotive wiring harness into the sleeve.
• Release the sleeve, and the woven structure will automatically self-wrap and tightly fit the harness.
• Cut Braided Split Wire Loom to the required length with scissors, and slightly seal the cut edge with a lighter to prevent fraying.

The whole installation process is simple and efficient, suitable for batch assembly of automobile factories and rapid construction of after-sales maintenance and modification. Moreover, Braided Split Wire Loom can be opened repeatedly, facilitating daily wiring inspection, troubleshooting and upgrade.

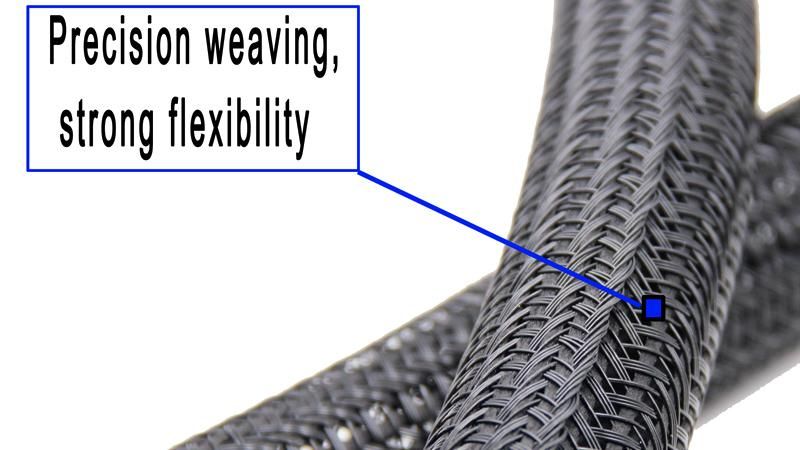

Core Benefits of Braided Split Wire Loom

1.Tool-Free Installation
The self-wrapping design lets you install the braided split wire loom in minutes, no cutting or disassembly required.
2.Flexible & Expandable Structure
This product is softer and more flexible than rigid plastic tubes. Braided split wire loom can bend freely to adapt to complex curved routing and narrow gaps inside the vehicle.
3.Flame Retardant & High Safety
Braided split wire loom meets industry flame-retardant standards, with self-extinguishing performance. It effectively suppresses flame spread when the circuit is short-circuited.
4.Reusable & Cost-Effective
The self-wrapping split structure supports repeated disassembly and installation. Braided split wire loom has stable performance after multiple uses, avoiding frequent replacement and reducing automotive wiring maintenance costs.

Solved Automotive Industry Pain Points

1.Low Installation & Maintenance Efficiency
Traditional closed sleeves and rigid tubes require wire cutting and disassembly for installation,which is time-consuming and labor-intensive. Braided split wire loom realizes tool-free quick installation and convenient later inspection.
2.Short Service Life of Harnesses
Ordinary casings have poor wear and heat resistance, leading to easy wire aging and damage in harsh automotive environments. The high-performance woven structure of Braided split wire loom provides all-round protection and solves the problem of short harness service life.
3.Poor Adaptability to Complex Routing
Rigid protective tubes cannot bend freely, which is easy to cause dead bending and extrusion of wires. Braided split wire loom features high flexibility and adaptability, perfectly fitting all complex automotive wiring paths.
4. Hidden Safety Hazards
Most traditional wire casings have no flame retardant function, bringing potential fire risks. Braided split wire loom adds flame retardant protection for vehicle circuits, making up for the safety defects of traditional products.
