Hook and Loop Fire Sleeve
- Part No: QX-HD-VL
- Material: Silicone rubber
Inner Diameter: 15mm-120mm
- Standard Color: Red
- Operating range: -65℃-300℃/1650℃ can withstand 15-30 seconds
- Breakdown Voltage: 12.2KV
- Cutting tool : Scissors
- Feature: Flame retardant, heat insulation, anti-aging ,anti-aging steel ,waterproof and resistance to oil ,acid and alkali etc
- MOQ: 200m
- Sample: Free sample
PRODUCT DESCRIPTION
The hook and loop fire sleeve is crafted from fire‑resistant fiberglass sheathing, reinforced with flame‑retardant buckles and high‑temperature sewing thread. It provides the same exceptional thermal and flame‑retardant protection as conventional fixed fire sleeves, yet its hook‑and‑loop closure enables quick installation or removal without shutting down equipment or disconnecting cables.
Simply press the two mating sides together to create an instant heat‑insulating barrier—keeping production running smoothly while cutting installation and maintenance time.
APPLICATION SCENARION
The hook and loop fire sleeve is widely used in high-temperature and heat-intensive areas such as cables, fluid pipelines, rolling mill cables, oil pipes, generator sets, high-voltage electrical equipment, hydraulic systems, automotive wiring harnesses, and exhaust pipes.
It is ideal for demanding environments across industries including steel, automotive, shipbuilding, metallurgy, machinery, electronics, petrochemicals, and chemicals, offering reliable thermal protection with the added benefit of easy installation and removal.
Color Customization
The standard color of our hook and loop fire sleeve is red, and other colors can be customized according to customer needs.
Specification
| Part No. | I.D/mm | Sigle Side Wall Thickness/mm | Roll/m |
| QX-HD-VL-1523 | 15 | 2.3 | 20 |
| QX-HD-VL-2026 | 20 | 2.6 | 20 |
| QX-HD-VL-2529 | 25 | 2.9 | 20 |
| QX-HD-VL-3031 | 30 | 3.1 | 20 |
| QX-HD-VL-3534 | 35 | 3.4 | 20 |
| QX-HD-VL-4035 | 40 | 3.5 | 20 |
| QX-HD-VL-4537 | 45 | 3.7 | 20 |
| QX-HD-VL-5039 | 50 | 3.9 | 20 |
| QX-HD-VL-5541 | 55 | 4.1 | 20 |
| QX-HD-VL-6043 | 60 | 4.3 | 20 |
| QX-HD-VL-6544 | 65 | 4.4 | 20 |
| QX-HD-VL-7047 | 70 | 4.7 | 20 |
| QX-HD-VL-7548 | 75 | 4.8 | 20 |
| QX-HD-VL-8050 | 80 | 5.0 | 20 |
| QX-HD-VL-8552 | 85 | 5.2 | 20 |
| QX-HD-VL-9056 | 90 | 5.6 | 20 |
| QX-HD-VL-9556 | 95 | 5.6 | 20 |
| QX-HD-10056 | 100 | 5.6 | 20 |
Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as

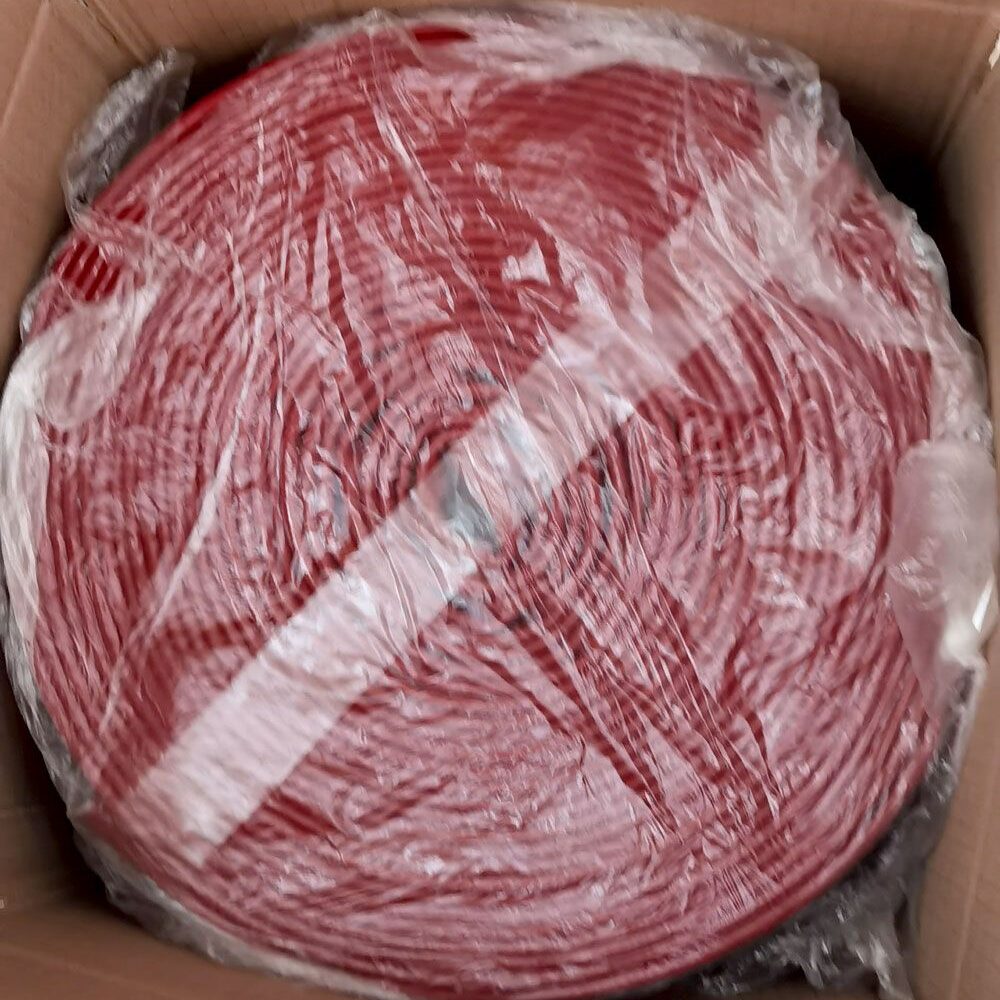

1. Reel packing
2. cartons, etc.
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
EKO & QX cable sleeve company is a manufacturer with independent development of cable management sleeves, whether you are a brand owner, retailer, and wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
FAQ
Hook and loop fire sleeve core advantage?
Compared with silicone coated fiberglass sleeveing, the hook and loop fire sleeve are more convenient to remove.
What is the minimum order quantity?
Regular sizes have a low MOQ; custom specs depend on material and width. Tell us your project and we’ll quote quickly.
Do you support bulk orders for factories or distributors?
Absolutely. We supply to industrial plants, cable harness factories, automotive OEMs, and wholesalers.
Do you provide samples?
Yes, we provide samples for clients to evaluate quality and specifications. Whether they are free depends on the case. Sample delivery time is usually faster than full orders. Please tell us your requirements and we’ll respond accordingly.
Can you customize size, color, or packaging?
Yes. We support OEM size, color, cut length, logo, and packaging for distributors and industrial clients.
