Silicone Coated Fiberglass Sleeve
- Part No: QX-HD-S
- Material: Fiberglass
- Standard Color: Red
- Sizes: ID 6mm~100mm, special sizes can be customized
- Operating range: -65℃-300℃/1650℃ can withstand 15-30 seconds
- Breakdown Voltage: 12.2KV
- Cutting tool : Scissors
- Feature: Flame retardant, fire, heat insulation, heat preservation, anti-aging,acid and alkali resistance, environmentally friendly and harmless, etc
- MOQ: 200m
- Sample: Free sample
PRODUCT DESCRIPTION
High-quality materials, good thermal insulation performance to protect the hose wire, protect the wire from melting, so that it is protected from high temperature, and extend the service life of the wire and hose.
APPLICATION SCENARION

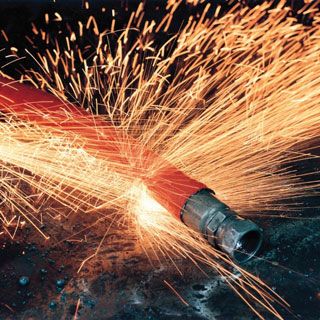

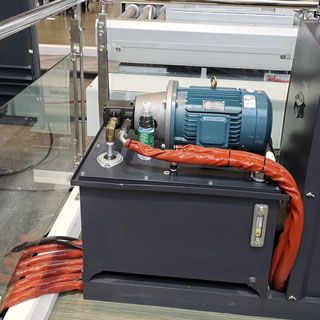

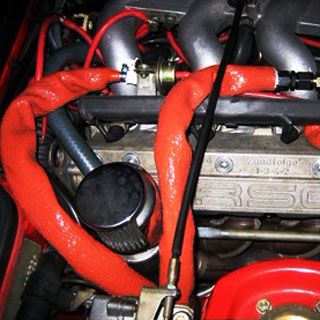

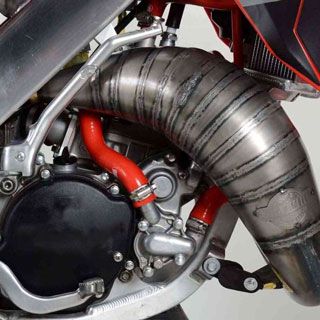

It is also widely used in cables, fluid pipes, rolling mill cables, oil pipelines, sawn edge cables, generator sets, metal hoses, hydraulic hoses, motorcycle wiring harnesses, etc.
Color Customization
Specification
| Part No. | I.D/mm | Sigle Side Wall Thickness/mm | Roll/m |
| QX-HD-S-0612 | 6 | 1.2 | 20 |
| QX-HD-S-0813 | 8 | 1.3 | 20 |
| QX-HD-S-1016 | 10 | 1.6 | 20 |
| QX-HD-S-1217 | 12 | 1.7 | 20 |
| QX-HD-S-1319 | 13 | 1.9 | 20 |
| QX-HD-S-1521 | 15 | 2.1 | 20 |
| QX-HD-S-2023 | 20 | 2.6 | 20 |
| QX-HD-S-2526 | 25 | 2.6 | 20 |
| QX-HD-S-3029 | 30 | 2.9 | 20 |
| QX-HD-S-3230 | 32 | 3.0 | 20 |
| QX-HD-S-3531 | 35 | 3.1 | 20 |
| QX-HD-S-3833 | 38 | 3.3 | 20 |
| QX-HD-S-4034 | 40 | 3.4 | 20 |
| QX-HD-S-4535 | 45 | 3.5 | 20 |
| QX-HD-S-5037 | 50 | 3.7 | 20 |
| QX-HD-S-5539 | 55 | 3.9 | 20 |
| QX-HD-S-6040 | 60 | 4.0 | 20 |
| QX-HD-S-6541 | 65 | 4.1 | 20 |
| QX-HD-S-7043 | 70 | 4.3 | 20 |
| QX-HD-S-7544 | 75 | 4.7 | 20 |
| QX-HD-S-8047 | 80 | 4.7 | 20 |
| QX-HD-S-8548 | 85 | 4.8 | 20 |
| QX-HD-S-8047 | 80 | 4.7 | 20 |
| QX-HD-S-8548 | 85 | 4.8 | 20 |
| QX-HD-S-9050 | 90 | 5.0 | 20 |
| QX-HD-S-9592 | 95 | 5.2 | 20 |
| QX-HD-S-10056 | 100 | 5.6 | 20 |
Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as

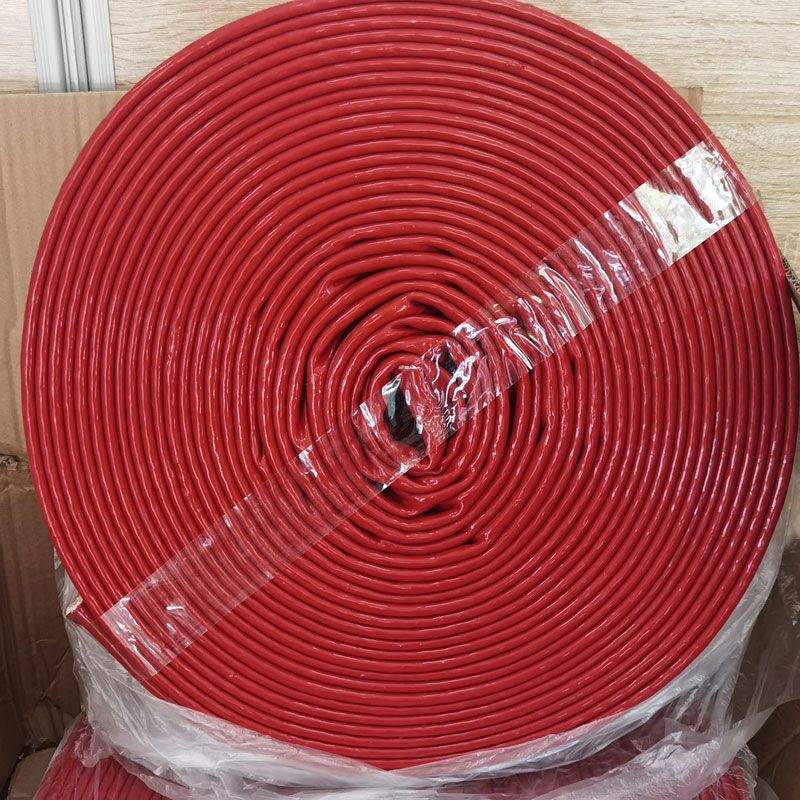

1. Reel packing
2. cartons, etc.
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
EKO & QX cable sleeve company is is a manufacturer with independent development of cable management sleeves, whether you are a brand owner, retailer, and wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
FAQ
Does it resist chemicals and oils?
How is it packaged?
Typically 20m per roll, packed in cartons with pallet options for bulk orders.
How do you ensure product quality?
We apply strict quality control at every stage—from raw material to finished product. We hold certifications such as ISO 9001, RoHS and REACH.
Do you provide samples?
Yes, we provide samples for clients to evaluate quality and specifications. Whether they are free depends on the case. Sample delivery time is usually faster than full orders. Please tell us your requirements and we’ll respond accordingly.
