Medical Harness Sleeves: Solving Hidden Safety Risks of Medical Equipment

Medical safety goes far beyond clinical skills — wiring safety matters greatly.

Many medical device failures and hospital audit non-compliance are caused by ignored harness risks, not core hardware issues. Cables in OR, ICU, and diagnostic areas endure disinfectant corrosion, constant bending, abrasion, and fire hazards.

Choose the right medical cable sleeve to mitigate clinical safety and compliance risks.

1. Four Unique Wiring Hidden Risks in Clinical Environments

Different from industrial machinery running in fixed, stable surroundings, medical devices bear four exclusive risk pressures that demand dedicated medical-grade wiring protection:

1.Aging risk caused by frequent disinfection: Regular wiping with alcohol and hydrogen peroxide will crack, peel ordinary industrial cable sleeves, expose inner conductors and bring about electric leakage threats.

2. Precision circuit instability risk: Persistent vibration and cyclic bending inside compact medical instruments gradually wear cable insulation, resulting in poor circuit conduction and distorted diagnostic data.

3. Toxic smoke & fire risk in closed spaces: Common high-smoke materials release harmful toxic fumes once short circuits trigger combustion, severely endangering patients and medical staff inside sealed clinical rooms.
4. Secondary safety risks after equipment maintenance: Traditional closed one-piece protective sleeves have to be cut open for circuit inspection, troubleshooting or cable replacement. The original protective structure is permanently damaged, leaving persistent safety loopholes for long-term use.

2. Targeted Harness Sleeve Solutions for Various Medical Hidden Risks

Every type of medical cable sleeve is customized for definite clinical pain points. Proper selection can thoroughly eliminate scenario-specific hazards, instead of applying universal industrial protective materials indiscriminately.

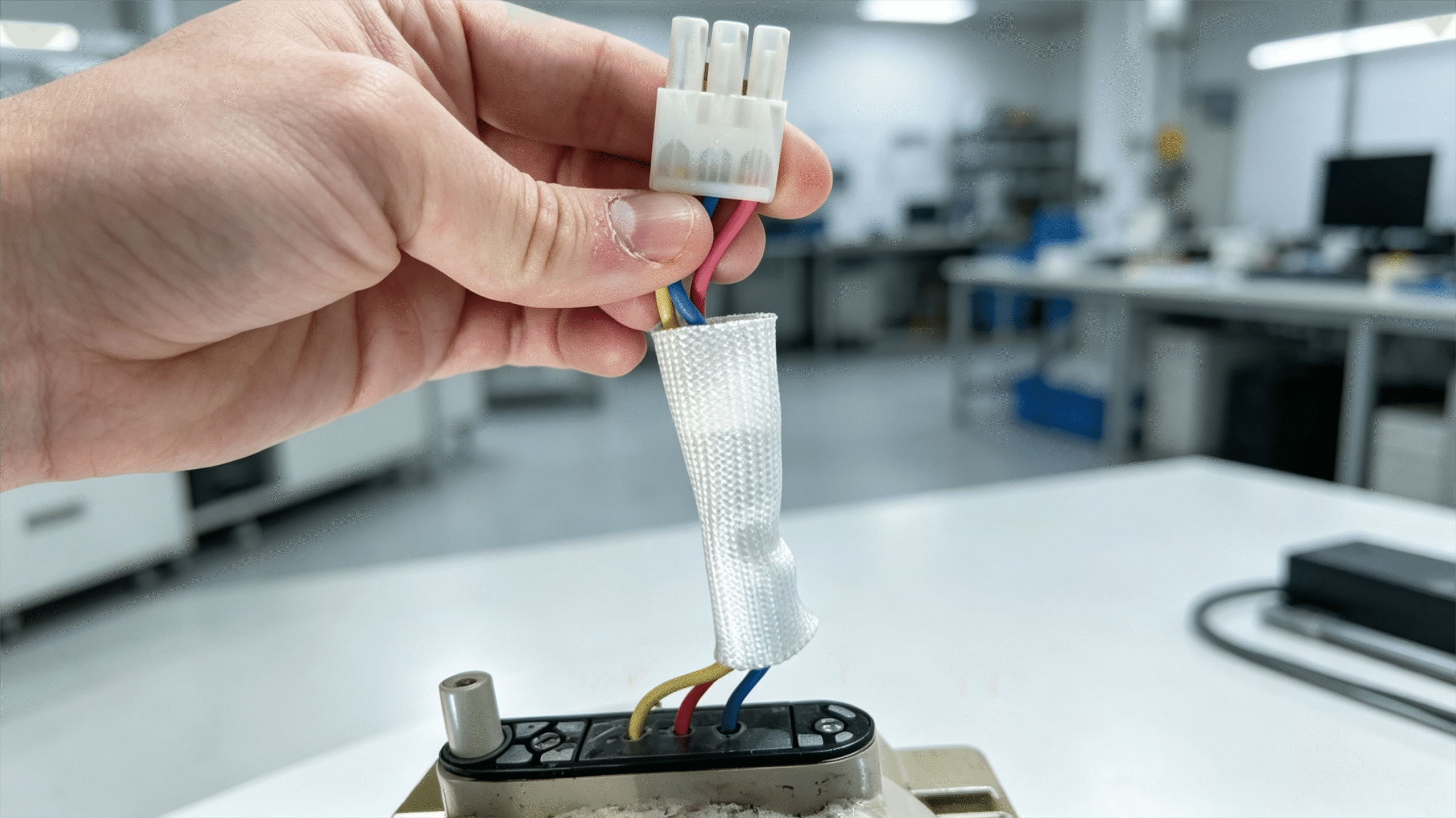

2.1 Insulating Sleeving: Block Basic Electric Leakage and Short-Circuit Hazards

Precision medical devices are packed with dense, tiny wires and terminals, which easily suffer short circuits due to long-term extrusion and friction. High-performance insulating sleeving made from fiberglass, polyester, and Nomex delivers stable electrical insulation, outstanding cutting resistance, and tensile strength.

It secures basic electrical safety for miniature wiring terminals and guarantees stable circuit operation of delicate medical equipment.

Applicable devices: Portable diagnostic detectors, mini therapeutic instruments, internal terminal wiring of analytical lab equipment

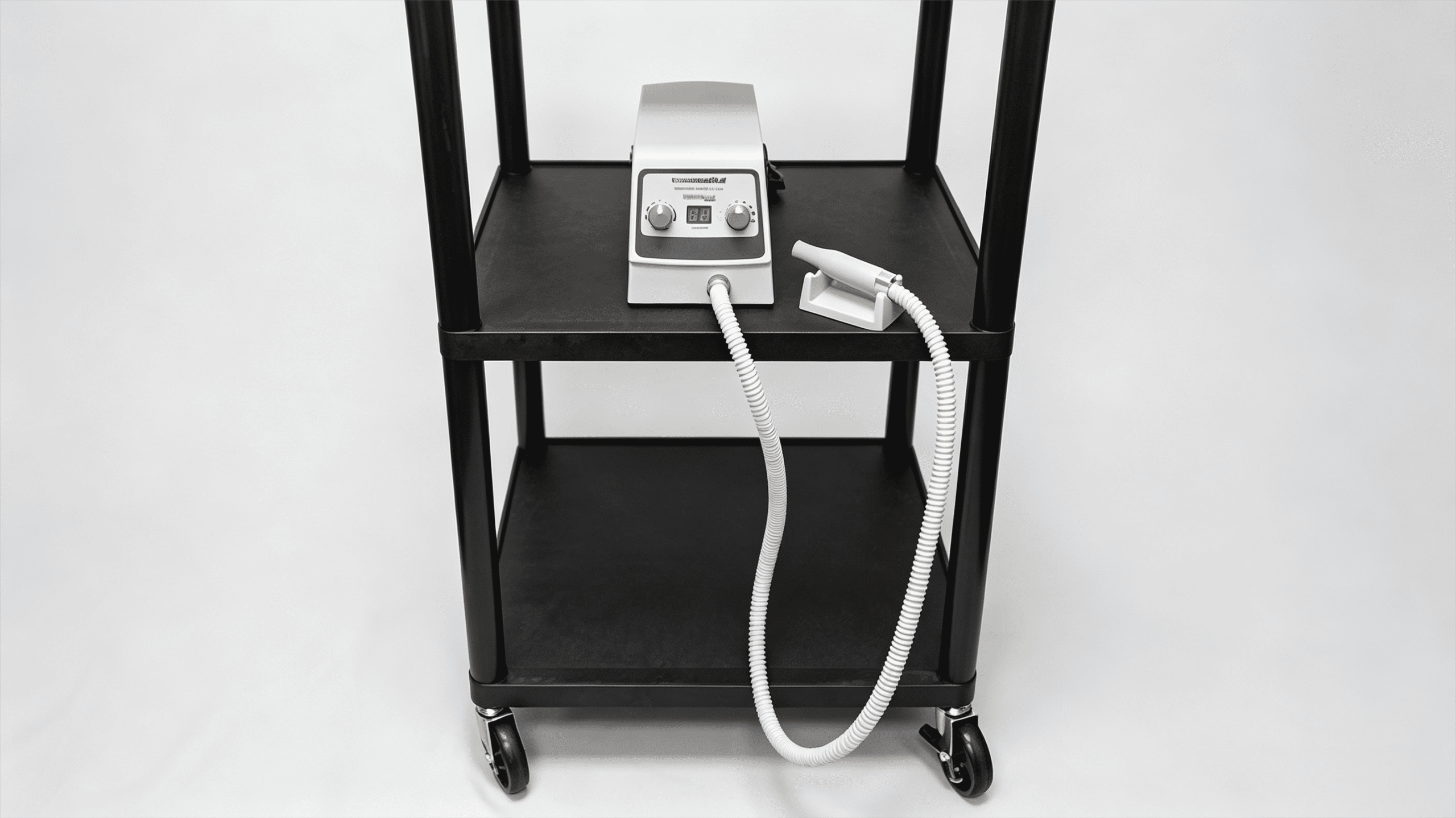

2.2 Flexible Corrugated Conduit: Resist Disinfection Corrosion and Mechanical Impact Damageg

Exposed cables on mobile medical devices face daily cleaning, collisions and frequent bending. High-strength flexible corrugated conduit stands up to medical chemical erosion, liquid infiltration and external puncture impacts, balancing compressive resistance and bending flexibility perfectly. It prevents external wiring from rapid aging and damage brought by daily ward cleaning and mobile deployment.

Applicable devices: Electric hospital beds, mobile nursing carts, removable ward auxiliary gear, ear microsuction instruments

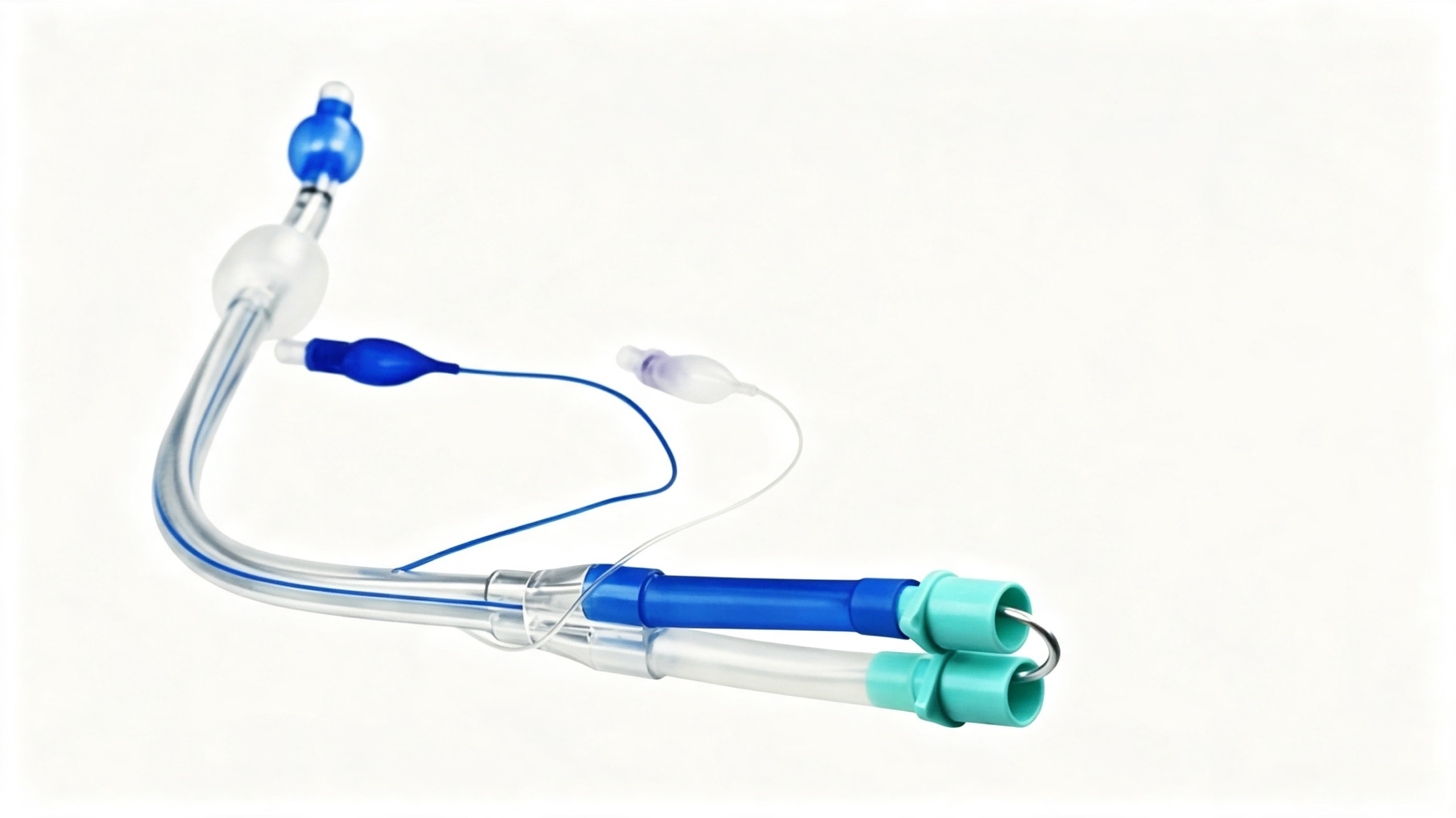

2.3 PTFE Heat Shrink Tubing: Abrasion Resistant Insulation for Medical Device Internal Wiring

Medical grade PTFE heat shrink tubing is engineered for medical internal wiring. It effectively resists vibration abrasion and disinfectant corrosion, maintaining stable insulation and electrical safety under frequent mechanical flexing.
Widely adopted in medical devices, it offers biocompatibility, ultra low friction coefficient and high temperature sterilization resistance for endoscope catheter cladding, angiography catheter reinforcement, surgical tool insulation and precision sensor jacketing.

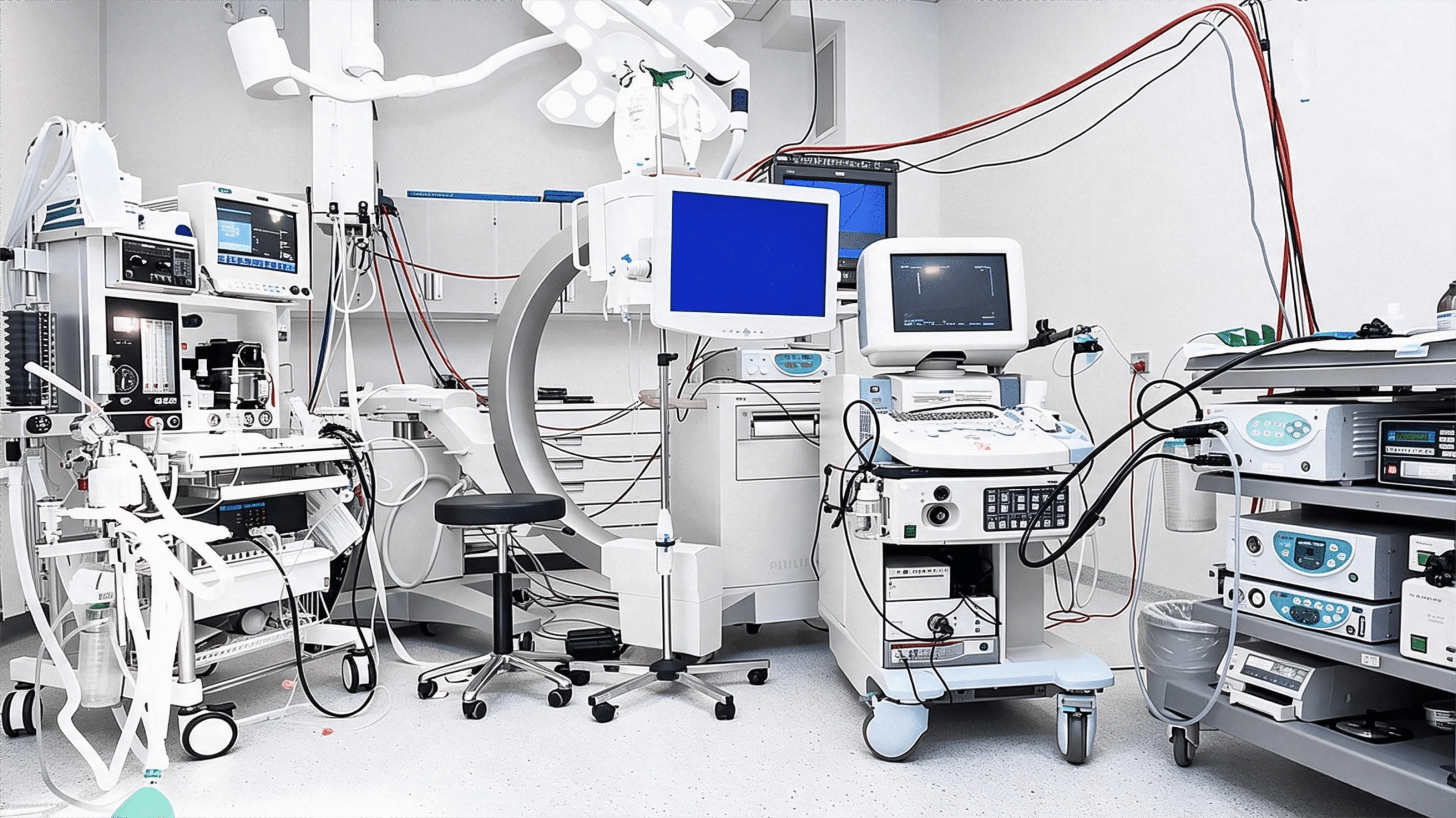

2.4 PET Braided Sleeving: Long-Term Stable Protection for Permanently Fixed Wiring

For medical equipment that operates steadily for years without regular circuit adjustment, stretchable PET braided sleeving provides 360° seamless overall protection. The woven wear-resistant structure blocks dust deposition and bacterial accumulation, maintaining stable performance of fixed internal wiring and fully complying with strict hospital hygiene specifications.
Applicable devices: Fixed internal wiring of large medical analytical equipment and integrated diagnostic systems

2.5 Split Braided Sleeving (Self-Wrap Bradided Sleeving): Eliminate Maintenance-Induced Secondary Safety Hazards

Reusable clinical medical equipment requires periodic circuit checks, surface disinfection and cable renewal. Conventional closed protective sleeves cannot be opened without cutting, which destroys the complete protective structure and creates lasting secondary safety risks after each overhaul.

Split braided sleeving relies on its inherent curling structure to wrap cables tightly without zippers or adhesive tapes. Users can freely unfold the sleeve to inspect, adjust or replace internal wires without any cutting tools. Meanwhile, it retains complete medical-grade performance: halogen-free flame retardancy, disinfection resistance, dustproof and low-smoke properties. It completely solves the industry pain point that “maintenance damages wiring protection”, greatly lowering long-term operational safety risks.
Applicable devices: Ventilators, patient monitors, laboratory analyzers, medium and large reusable clinical medical equipment

3. Risk-Oriented Sleeve Selection Comparison Table

This table matches protective products with clinical hidden dangers rather than listing simple technical parameters, enabling engineers to quickly confirm targeted wiring protection schemes:

4. Mandatory Medical Compliance Standards & Hidden Compliance Costs

Medical cable sleeves for medical devices need three key compliance requirements for hospital audits and device registration: IEC 606011 & GB 9706.1 electrical safety, RoHS REACH low smoke halogen free flame retardant materials, and clinical resistance to repeated disinfection and bacterial growth.
Many manufacturers opt for low cost industrial sleeves. These degrade and peel under hospital disinfection, triggering certification failure, equipment downtime, electrical risks and brand damage.

Selecting certified medical grade cable sleeves satisfies all regulatory requirements. It cuts long term maintenance, audit failure and recall risks, supporting cost effective, reliable medical device design.

5. FAQ for Medical Wiring Safety Protection

Q1: Why cannot ordinary industrial sleeves replace medical-grade harness sleeves?
A: Industrial cable sleeves do not possess disinfection resistance, low-smoke non-toxic performance and formal medical electrical compliance. They degrade rapidly in clinical environments and cannot pass medical device certification and hospital safety inspection.

Q2: What are the key application scenarios for medical grade PTFE heat shrink tubing?
A: It is ideal for internal main wiring of compact medical instruments enduring continuous vibration and repeated flexing. It delivers reliable insulation, anti abrasion and excellent chemical resistance against various hospital disinfectants.

Q3: Can your medical sleeves assist with medical device certification filing?
A: All our self-developed medical-grade sleeves comply with international healthcare standards. We can provide complete test reports covering halogen-free, RoHS and flame retardant indicators to support medical device registration and hospital filing procedures.

Q4: How to quickly select suitable harness sleeves for different medical devices?
A: Take clinical hidden risks as the core selection basis: pick insulating anti-interference sleeves for precision imaging equipment, corrosion-resistant corrugated conduits for mobile ward devices, and split braided sleeving (self-wrap bradied sleeving) for equipment requiring regular inspection and maintenance.

Conclusion

Medical harness sleeves are more than cable organizers, they provide systematic clinical riskprevention solutions.
Quality protective sleeves address major hazards including disinfectant corrosion, cable abrasion, fire threats and maintenance triggered safety loopholes.

Medical grade sleeves eliminate wiring risks, secure reliable clinical operation and meet global medical certification and hospital audit requirements..
