200°C Open Type Twist Sleeve
- Part No: QX-SMA
- Material: PPS Monofilament and meta-aramid
- Standard Color: Green
- Sizes: ID 5mm~70mm, special sizes can be customized
- Operating range: -55℃~+200℃
- Feature: Twist design ,resistant to cutting and scratching waterproof and oilproof Salt spray and mildew ,marking line of maximum working diameter
- MOQ: 1 Roll
PRODUCT DESCRIPTION

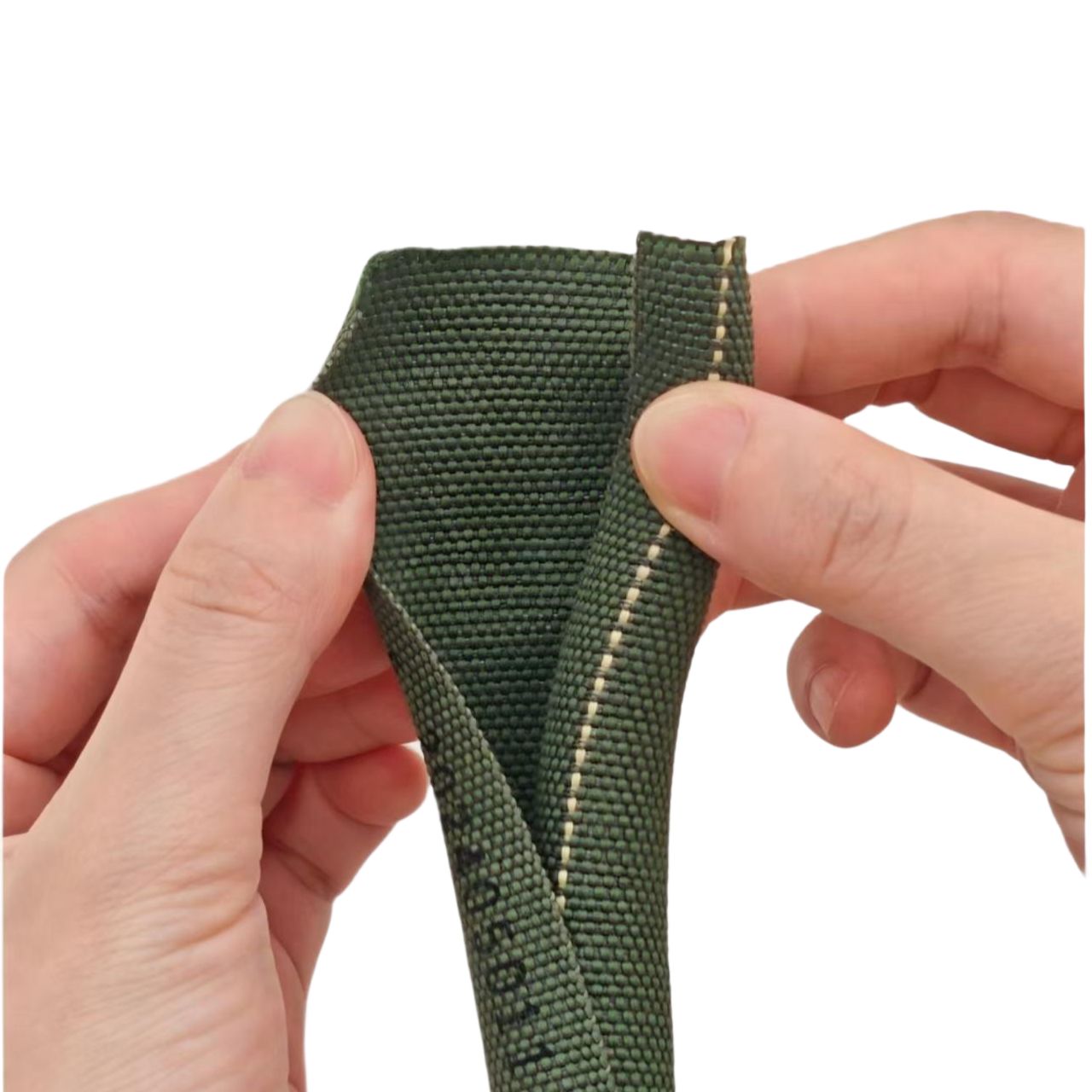

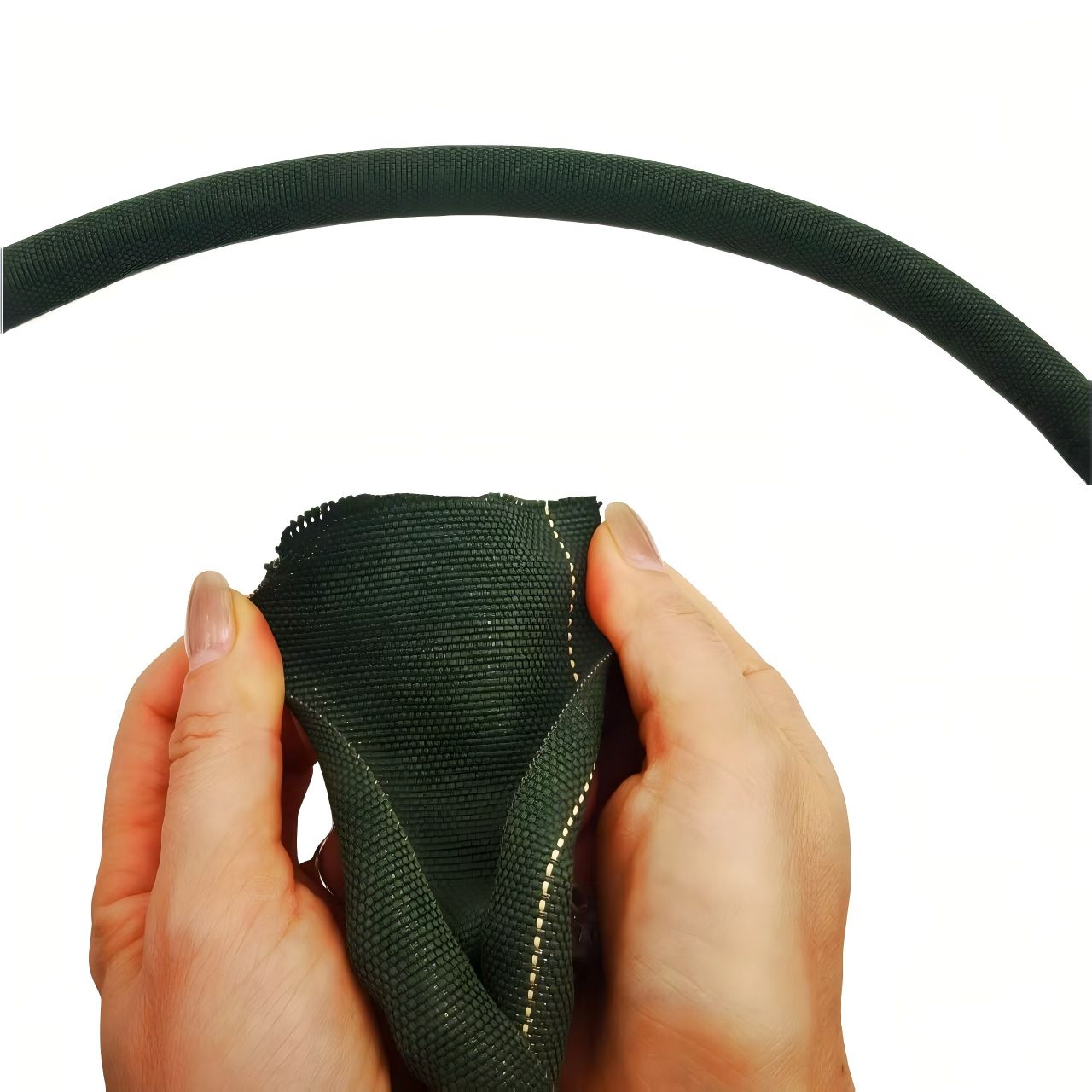

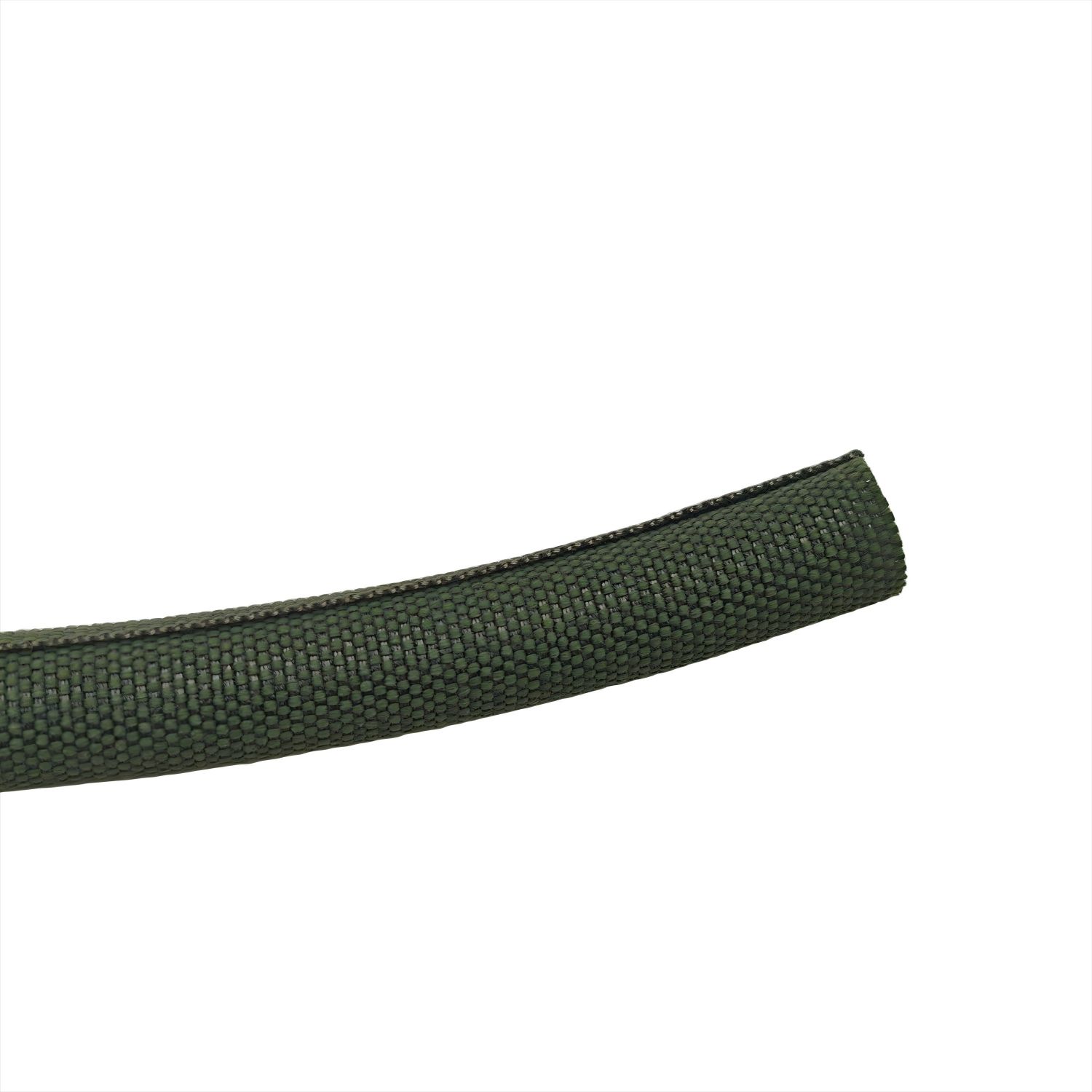

The 200°C Open Type Twist Sleeve is a premium self-wrapping cable sleeve engineered from a durable blend of PPS (polyphenylene sulfide) monofilament and meta-aramid fibers. Designed with an open-type, twistable construction, this sleeve allows for easy installation, inspection, and maintenance without the need to disconnect wires or cables—perfect for environments requiring frequent rework or upgrades.
With a continuous operating temperature of up to 200°C, this Open Type Twist Metal Shielding Sleeve delivers outstanding thermal resistance while offering superior protection against abrasion, oil, moisture, chemicals, and mildew. Its flexible yet rugged design ensures long-lasting performance in demanding applications.
APPLICATION SCENARION
The 200°C Open Type Twist Sleeve is widely adopted across high-demand industries such as aerospace, defense, automotive, and industrial automation. In aerospace and aviation systems, it effectively organizes and protects complex wiring harnesses in aircraft and satellites, offering lightweight, flame-retardant, and high-temperature resistance. In automotive engine bays, this sleeve provides critical thermal shielding and abrasion protection for wires routed near hot engine components, turbochargers, or exhaust systems—ensuring reliable performance in high-performance and heavy-duty vehicles.
Color Customization
The standard color of our 200°C Open Type Twist Sleeve is green color available.
Specification
| Part No. | Overlap Angle | Thickness(±0.1mm) | Nominal Diameter (mm) | Max Weight (g/m) |
| QX-SMA-05-5 | 5° ~ 130° | 0.78 | 1 ~ 5 | 13 |
| QX-SMA-08-5 | 5° ~ 130° | 0.78 | 5 ~ 8 | 18 |
| QX-SMA-13-5 | 5° ~ 130° | 0.78 | 8 ~ 13 | 26 |
| QX-SMA-16-5 | 5° ~ 130° | 0.78 | 13 ~ 16 | 33 |
| QX-SMA-19-5 | 70° ~ 110° | 0.78 | 16 ~ 19 | 38 |
| QX-SMA-25-5 | 70° ~ 110° | 0.78 | 19 ~ 25 | 47 |
| QX-SMA-32-5 | 70° ~ 130° | 0.78 | 25 ~ 32 | 65 |
| QX-SMA-40-5 | 70° ~ 110° | 0.78 | 32 ~ 40 | 90 |
| QX-SMA-50-5 | 70° ~ 110° | 0.78 | 40 ~ 50 | 105 |
| QX-SMA-60-5 | 70° ~ 110° | 0.78 | 50 ~ 60 | 121 |
| QX-SMA-70-5 | 70° ~ 130° | 0.78 | 60 ~ 70 | 143 |
- Specia packages,sizes and colors can be supplied upon request
Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as
1. Boxed
2. PVC boxes
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
