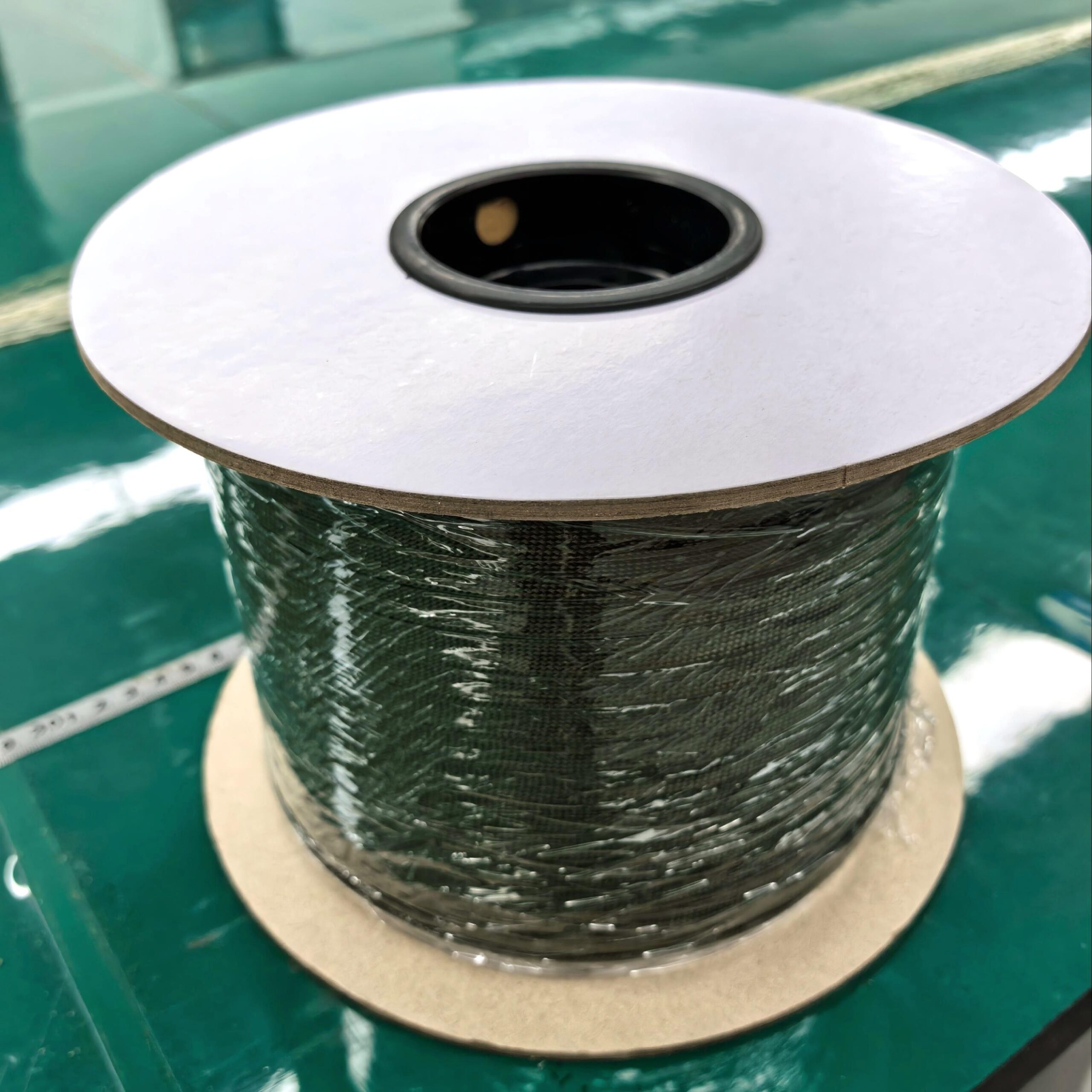

Meta-Aramid Braided Sleeving
- Intro: Made of meta-aramid fiber, this braided sleeving withstands long-term 240℃ heat.
- Part No: QX-SMCA
- Material: Meta-aramid fiber
- Standard Color: Green
- Sizes: Diameter 1mm~50mm, special sizes can be customized
- Operating range: -55℃+240℃
- Flammability: UL94V-0
- Expansion raio: 1:2 or 1:3
- Feature: Flame retardant, waterproof, abrasion resistance, and oil resists
- MOQ: 1 Roll
PRODUCT DESCRIPTION
APPLICATION SCENARIO
In automotive applications, it protects engine bay cables and insulates EV battery cables. In rail transit, it enables fire-safe cable bundling inside passenger compartments and control cabinets. Industrially, it shields wires near furnaces, turbines, or welding lines.
In electronics and energy fields, it delivers high-temperature board-level insulation and protects cables used in solar, wind, and power distribution systems, playing a crucial role in extreme industrial environments.
Technical Specifications
| Technical Specifications | |
|---|---|
| Item | Specification |
| Material | Meta-Aramid |
| Operating Temperature | -50°C to +250°C |
| Peak Temperature | 300°C (short-term exposure) |
| Flame Rating | UL94 V-0 |
| Sizes Available | 3mm – 50mm (custom sizes available) |
| Color Options | Natural Yellow (custom colors available) |
| Packaging | Rolls or pre-cut lengths |
| Temperature Resistance | Continuous: -50°C to +240°C, Peak: up to 300°C |
| Flame Retardancy | Self-extinguishing, complies with UL94 V-0 |
| Electrical Insulation | Non-conductive, high dielectric strength |
| Abrasion Resistance | Durable woven structure, resists fraying |
| Chemical Resistance | Resists oil, solvent, acid, and alkali exposure |
| Flexibility & Lightweight | Easy to install on irregular or moving harnesses |
| Low Smoke & Non-toxic | Ideal for enclosed and passenger-related applications |
Specification
| Part No. | Size | Package | |||
| Flat width (mm) | Min Diameter (mm) | Max Diameter (mm) | Nominal Diameter (mm) | ||
| QX-SMCA-1/2-5 | 1 | 1 | 2 | 2 | 400m/roll |
| QX-SMCA-2/4-5 | 2 | 2 | 4 | 4 | 400m/roll |
| QX-SMCA-4/8-5 | 4 | 4 | 8 | 6 | 300m/roll |
| QX-SMCA-6/12-5 | 6 | 6 | 12 | 8 | 250m/roll |
| QX-SMCA-8/16-5 | 8 | 8 | 16 | 10 | 200m/roll |
| QX-SMCA-10/20-5 | 10 | 10 | 20 | 15 | 200m/roll |
| QX-SMCA-12/24-5 | 12 | 12 | 24 | 20 | 150m/roll |
| QX-SMCA-15/30-5 | 15 | 15 | 30 | 25 | 100m/roll |
| QX-SMCA-20/40-5 | 20 | 20 | 40 | 30 | 100m/roll |
| QX-SMCA-40/50-5 | 40 | 40 | 50 | 45 | 50m/roll |
| QX-SMCA-50/60-5 | 50 | 50 | 60 | 55 | 50m/roll |
- Specia packages,sizes and colors can be supplied upon request
Package Customized
1. Boxed
2. Packaged by volumes
3. According to the customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
EKO & QX cable sleeve company is a manufacturer with independent development of cable management sleeves, whether you are a brand owner, retailer, and wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.
It covers special customization, packaging customization, logo printing, etc., to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
FAQ
What is the packaging method of the product? Can it be cut to a fixed length?
Will it produce toxic smoke when used in high-temperature enclosed compartments or engine bays?
What are the standard colors? Can special colors such as army green and black be customized?
How flexible is the meta-aramid sleeving? Is it suitable for irregular and moving wire harnesses?
What material is your meta-aramid braided sleeving made of? Is it the same as Nomex®?
Do you provide samples?
Yes, we provide samples for clients to evaluate quality and specifications. Whether they are free depends on the case. Sample delivery time is usually faster than full orders. Please tell us your requirements and we’ll respond accordingly.
