Hook and loop shielding cable sleeve
- Part No: QX-MSS
- Wrap material: Polyester
- Velcro material: Polyamide
- Standard Color: Black
- Operating range: -50℃±150℃
- Melt point: 240℃±10℃
- Flammability: DIN5510
- Certificate: RoHS , Halogen-free
- Cutting tool : Scissor
- Feature: Shielding electromagnetic interference, noise reduction, dust protection, leakage protection, etc
- MOQ: 1000m
- Sample: Free sample
PRODUCT DESCRIPTION
The hook and loop shielding sleeve is made from a tin-plated copper braided mesh combined with a flame-retardant textile belt and secure hook-and-loop stitching. It provides effective protection against electromagnetic interference (EMI), reduces noise, and offers dust and abrasion resistance.
The hook-and-loop design allows quick, convenient installation and easy re-opening for maintenance.
APPLICATION SCENARION
Hook and loop shielding cable sleeves are widely applied across a variety of industries, offering reliable EMI protection and cable management. These sleeves are commonly used in rail buses, high-speed rail systems, automobiles, aerospace, telecommunications, industrial machinery, medical equipment, and electronic appliances, where superior shielding performance and easy access to cables are essential.
Color Customization
The hook and loop shielding cable sleeve comes in a standard black color, offering a sleek and professional appearance.
For specific applications or branding requirements, custom colors are available upon request, allowing flexible customization to meet diverse customer needs.
Specification
| Part No. | I.D(mm) | Applicable outer diameter | Packing(L) |
| MSS-16 | 16 | 10-16 | 50m/roll Customized length |
| MSS-20 | 20 | 17-20 | |
| MSS-30 | 30 | 21-30 | |
| MSS-50 | 50 | 31-50 |
-
Nominal size indicates the flat width.
2. Special packages and sizes can be supplied upon request .
3. All numeric data shows average or typical values , not including customized sizes .
Package Customized
1. Roll packing

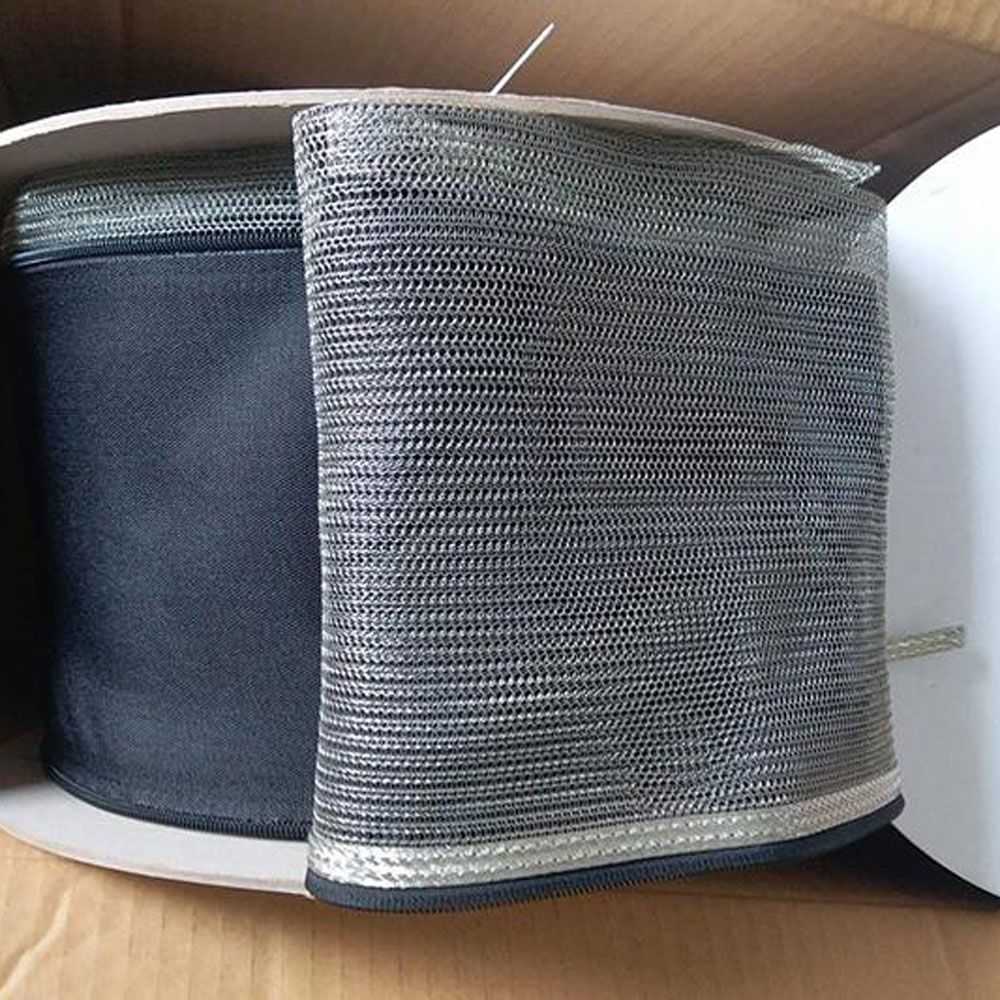

2. Carton packing
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
EKO & QX cable sleeve company is a manufacturer with independent development of cable management sleeves. Whether you are a brand owner, retailer, wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.
It covers special customization, packaging customization, logo printing, etc., to meet customers’ diversified needs and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
