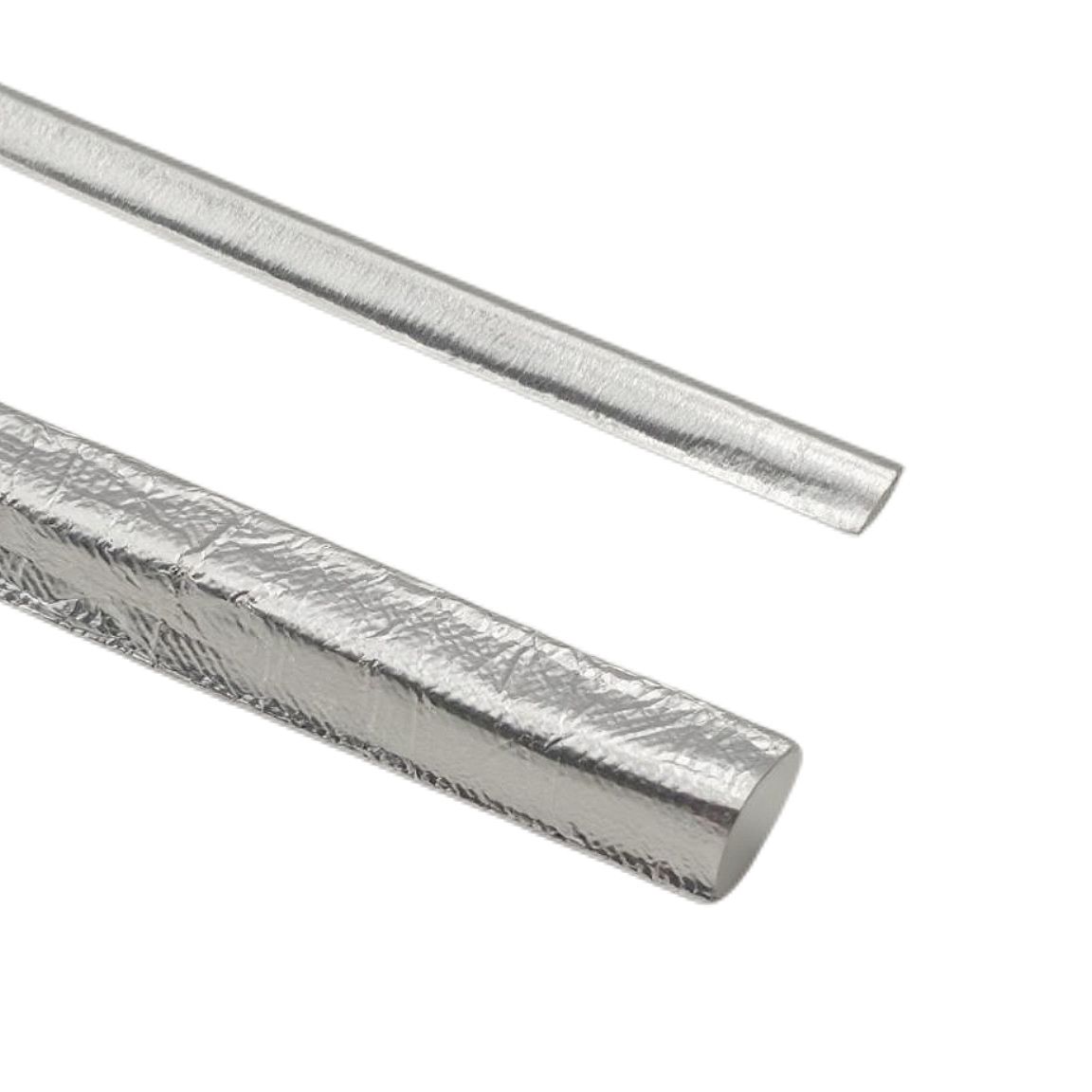

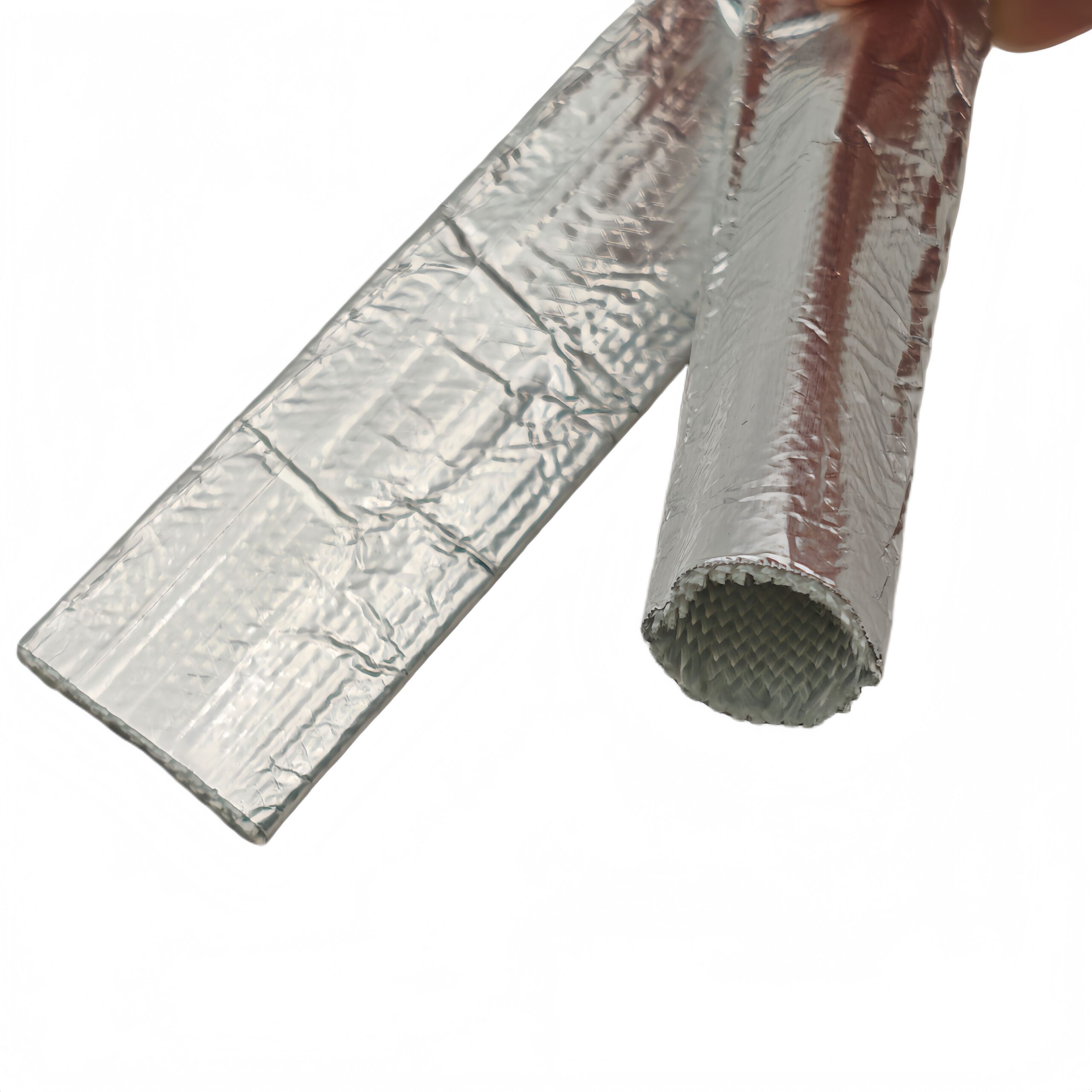

Aluminum Foil Coated Fiberglass Heat Shield Sleeve
- Part No: QX-SLBA
- Material: Aluminum Foil 、Woven Fiberglass
- Standard Color: Silver
- Sizes: Inner diameter 10mm~40mm, special sizes can be customized
- Operating range: -50℃±200℃
- Flammability: UL94V-0
- Feature: High Temp Resistant, Heat Reflective, Flexible
- MOQ: 1 Roll
PRODUCT DESCRIPTION

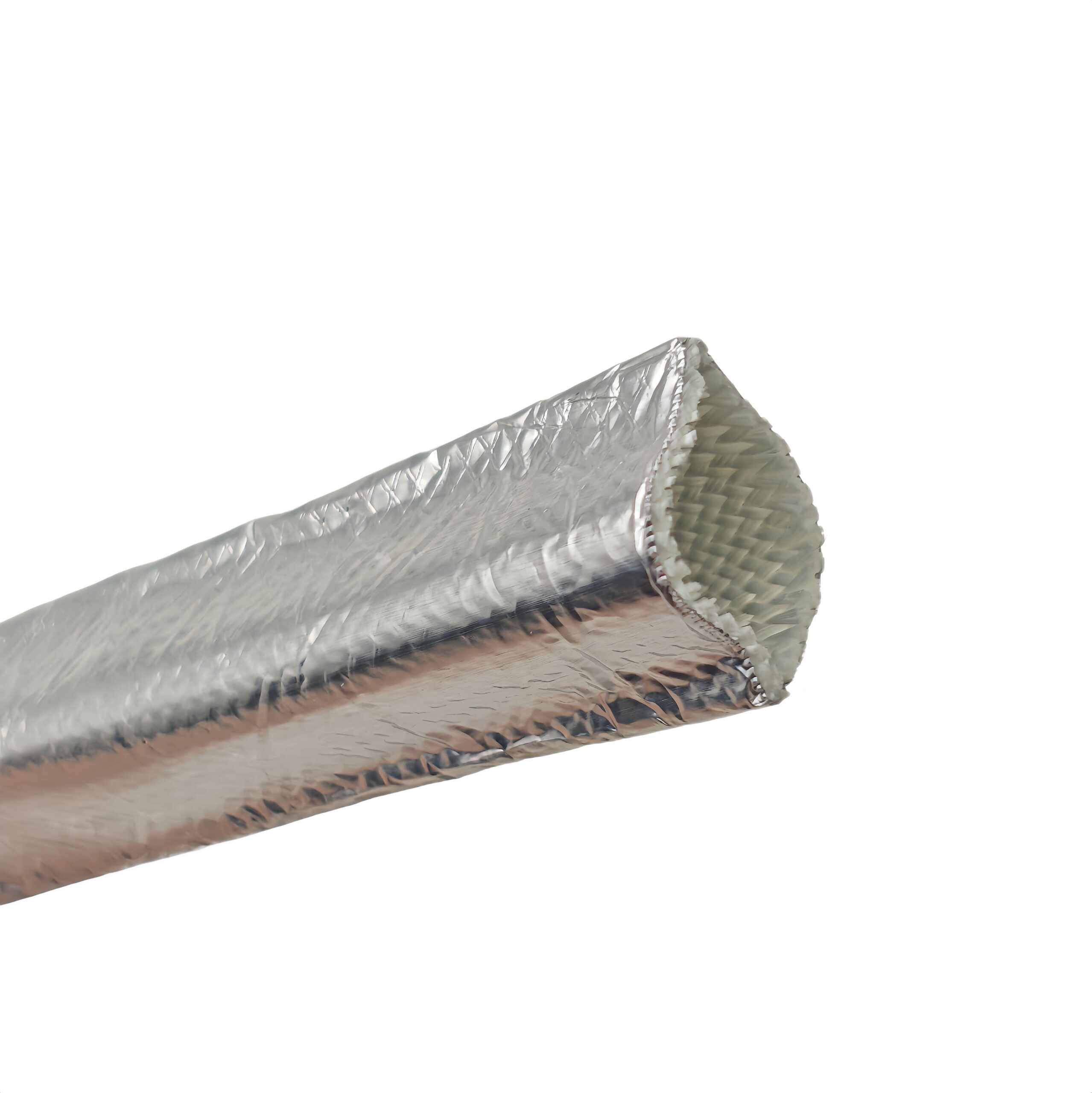

Aluminum Foil Fiberglass Heat Shield Sleeve is a high performance thermal insulation sleeve designed to protect wires, cables, hoses, and pipes from radiant heat and direct flame exposure. It is made of a high-temperature resistant woven fiberglass inner layer and a reflective aluminum foil outer layer, offering both excellent heat reflection and mechanical protection.
Aluminum Foil Coated Fiberglass Heat Shield Sleeve is lightweight, flexible, and easy to install. The reflective aluminum layer deflects up to 90% of radiant heat, while the fiberglass layer provides superior insulation and flame resistance.
APPLICATION SCENARION
Aluminum foil fiberglass sleeves are widely used in environments where heat protection and insulation are essential. They are commonly applied in automotive engine bays to protect fuel lines, brake lines, and wiring harnesses from radiant heat. In industrial settings, they are used to shield cables, hoses, and pipes near furnaces or high temperature equipment.
Aluminum Foil Coated Fiberglass Heat Shield Sleeves are also ideal for aerospace, railway, and marine applications where both thermal protection and mechanical durability are required.
Color Customization
The standard color of our Aluminum Foil Coated Fiberglass Heat Shield Sleeve is silver available.
Specification
| Part No. | I.D(mm) | Max bundle Dia(mm) | Thickness(mm) | Packing (m/roll) |
| QX-SLBA-10 | 10 | 11 | 0.5 | 50m |
| QX-SLBA-12 | 12 | 13 | 0.5 | |
| QX-SLBA-16 | 16 | 17 | 0.5 | |
| QX-SLBA-20 | 20 | 21 | 0.7 | |
| QX-SLBA-25 | 25 | 26 | 0.7 | |
| QX-SLBA-30 | 30 | 31 | 0.7 | |
| QX-SLBA-35 | 35 | 36 | 0.7 | |
| QX-SLBA-40 | 40 | 41 | 0.7 |
-
1. Specia packages,sizes and colors can be supplied upon request
Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as
1. Boxed
2. PVC boxes
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
