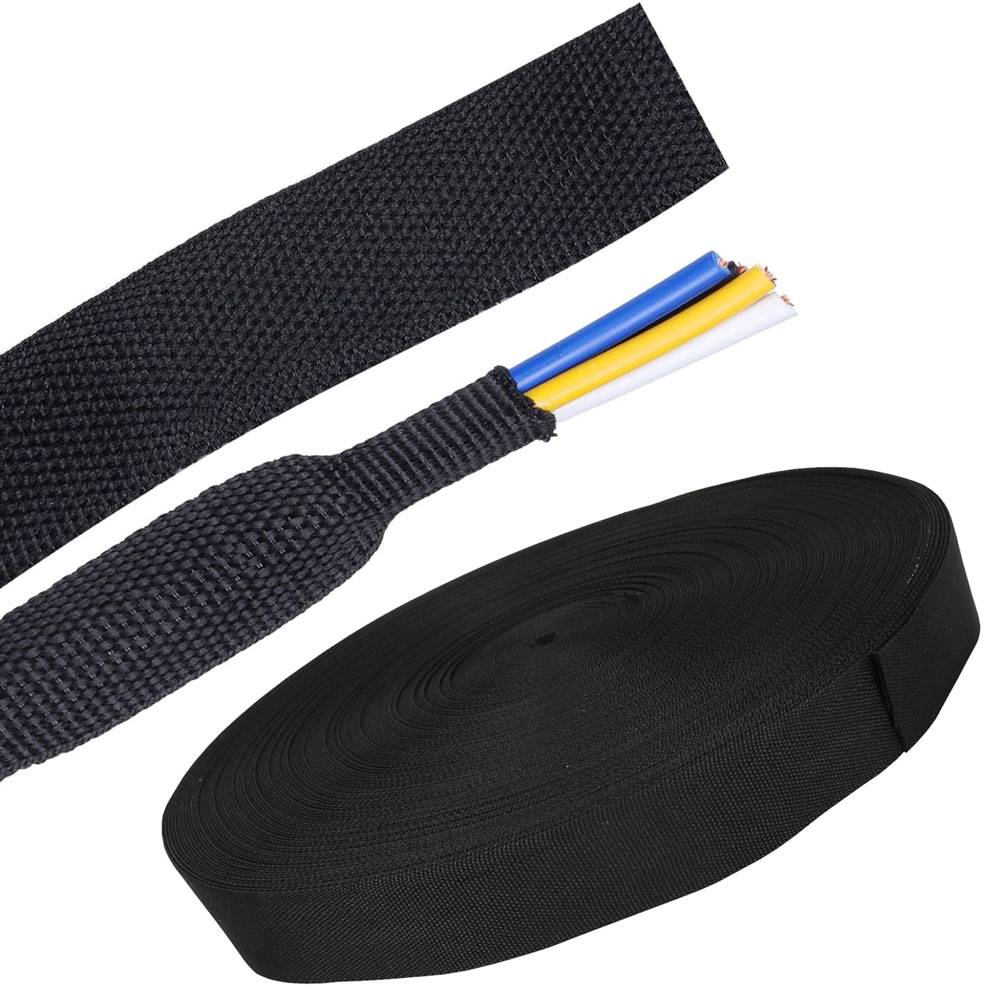

Fabric Heat Shrink Tubing
- Intro: Fabric heat shrink tubing is a flexible, heat-shrinkable woven solution for irregular hoses in harsh environments.
- Part No: HS-FW
- Material: Polyolefin and Polyester
- Standard Color: Black
- Shinking ratio: 2:1
- Min.shrink temperature: 80℃
- Min.fully recovery temperature: 120℃
- Sizes: ID10mm~100mm, special sizes can be customized
- Cutting tool : Hot gun
- Feature: Heat insulation, noise reduction, wear-resistant, odorless, environmentally friendly and harmless, etc
- MOQ: 100m
- Sample: Free sample
PRODUCT DESCRIPTION
Fabric heat shrink tubing is composed of polyester multifilament and specially modified polyolefin filament.
After heat shrinking, its unique braided structure gives it excellent flexibility, abrasion resistance, and effective noise reduction, making it suitable for installation on irregularly shaped hoses in harsh environments.
APPLICATION SCENARION
It is widely used to protect rubber hoses, plastic pipes, and wire harnesses from damage. Also, it can reduce noise and rattle so it is suitable for automotive and industry fields.
Color Customization
Our fabric heat shrink tubing are only available in black .
Specification
| Part No. | As supplied(mm) | After recovered (mm) | Packing (L) |
| HS-FW010 | 10.0 | 5.0 | 100m/roll |
| HS-FW012 | 12.0 | 6.0 | 100m/roll |
| HS-FW016 | 16.0 | 8 | 100m/roll |
| HS-FW020 | 20.0 | 10.0 | 100m/roll |
| HS-FW025 | 25.0 | 12.5 | 100m/roll |
| HS-FW030 | 30.0 | 15.0 | 50m/roll |
| HS-FW040 | 40.0 | 20.0 | 50m/roll |
| HS-FW045 | 45.0 | 22.5 | 50m/roll |
| HS-FW050 | 50.0 | 25.0 | 50m/roll |
| HS-FW060 | 60.0 | 30.0 | 50m/roll |
| HS-FW070 | 70.0 | 35 | 50m/roll |
| HS-FW080 | 80.0 | 40.0 | 50m/roll |
| HS-FW090 | 90.0 | 45.0 | 50m/roll |
| HS-FW100 | 100.0 | 50.0 | 50m/roll |
Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as
1. PE ziplock bags
2. PVC boxes, etc.
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
EKO & QX cable sleeve company is is a manufacturer with independent development of cable management sleeves, whether you are a brand owner, retailer, and wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
