Expandable PPS braided sleeve protecting the wire harness

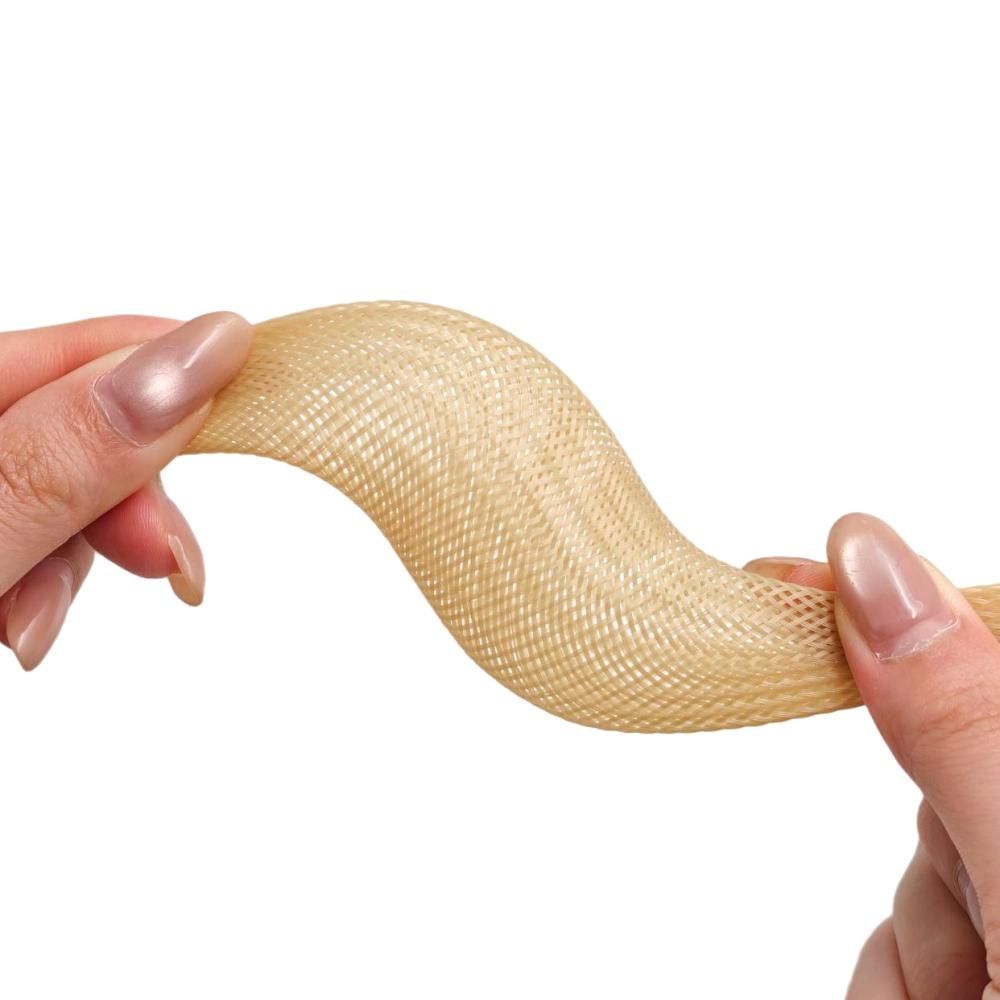

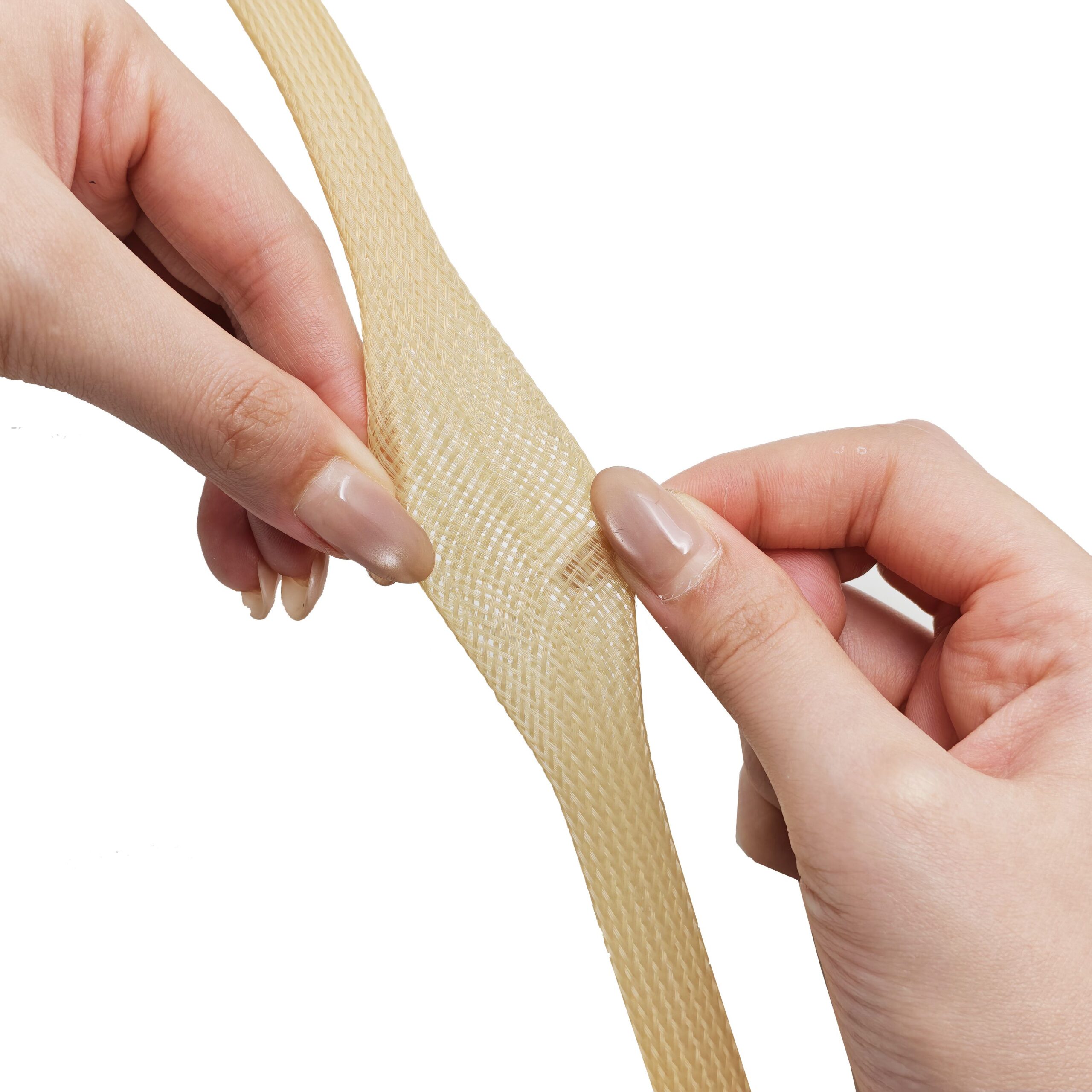

Expandable PPS braided sleeve stretchability

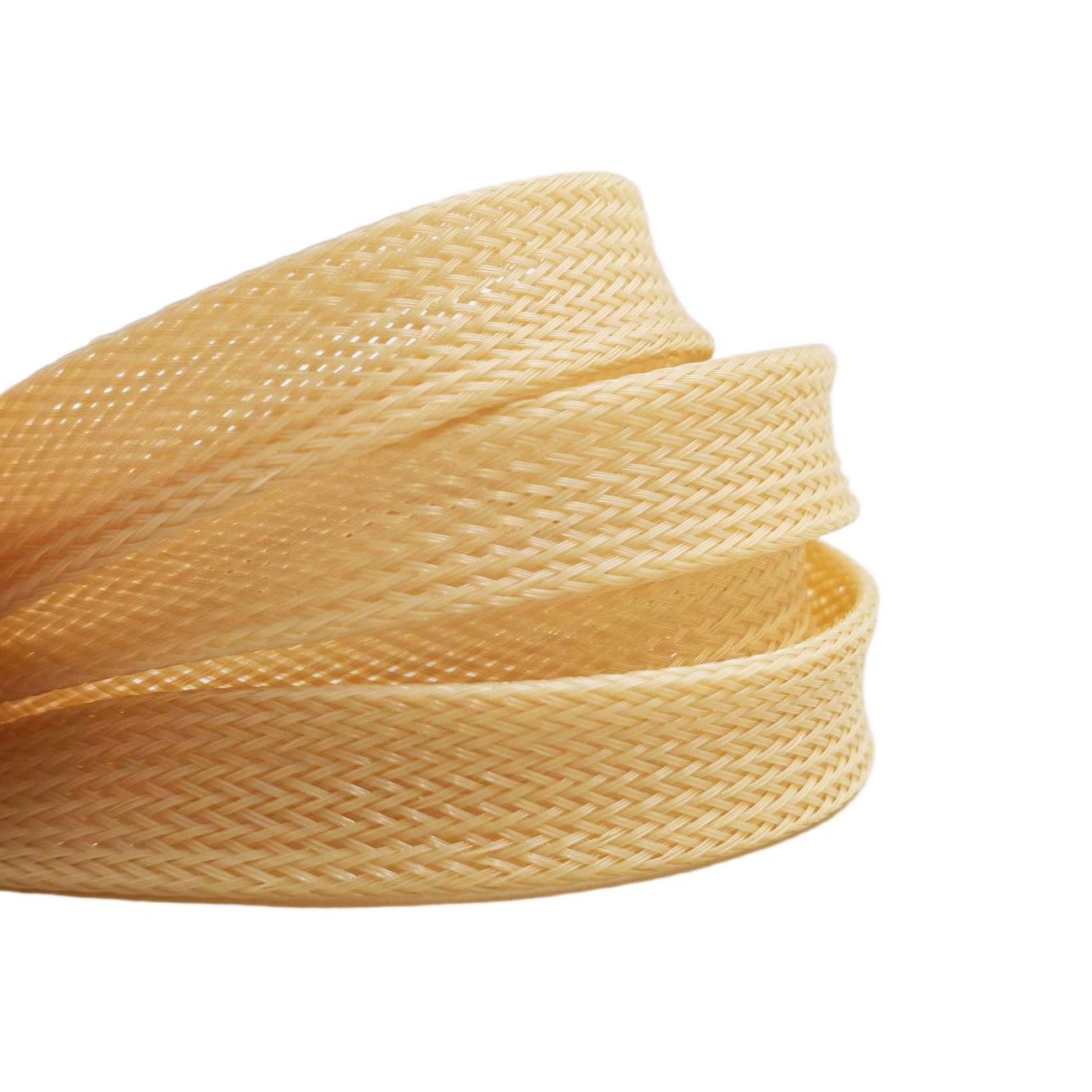

Expandable PPS braided sleeving

Part No: QX-SPB
Material: PPS
Standard Color: Natural
Sizes: 2mm~60mm
Operating range: -70℃~+200℃

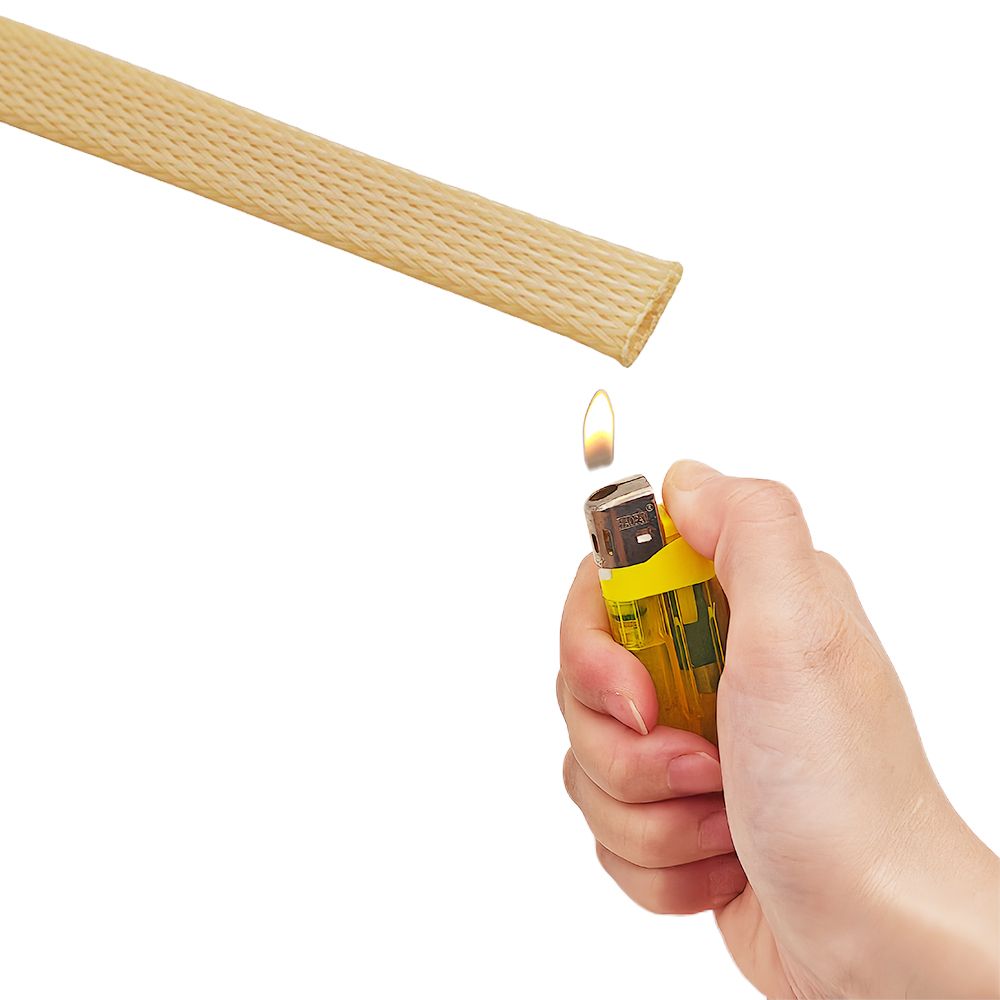

Flammability: UL94V-0
Feature: Corrosion resistance, wear resistance, heat dissipation, expandability, easy to bend, high temperature and low temperature resistance, non-toxic, halogen-free
MOQ: 1 Roll

PRODUCT DESCRIPTION

Expandable PPS braided sleeve is a sleeve woven from PPS monofilaments. PPS monofilaments have high creep resistance, excellent thermal stability, wear resistance, flame retardancy, self-extinguishing, excellent chemical stability, and resistance to dilute acids and alkalis. It is used in the aerospace industry because of its excellent performance in extreme environments.

APPLICATION SCENARION

Expandable PPS braided sleeving is ideal for protecting cables, wires, and hoses in electronics, industrial machinery, automotive, aerospace, and new energy systems. It resists high temperatures, wear, corrosion, and UV, ensuring reliable performance in harsh environments.

Expandable PPS braided sleeve for automotive engine compartment wiring harness wrapping

Expandable PPS braided sleeve for industrial machinery hydraulic pipeline protection

Expandable PPS braided sleeves are used for cable protection inside electronic equipment

Expandable PPS braided sleeves are used for cable protection in photovoltaic power plants

Color Customization

The standard color of our Expandable PPS braided sleeving is true color available.

CONSULT NOW

Specification

Part No.	I.D(mm)	Flat width(mm)	Sleeve diameter range(mm)
QX-SPB-2	2	2±1	2～4
QX-SPB-4	4	4±1	3～6
QX-SPB-6	6	6±1	5～9
QX-SPB-8	8	8±1	7～10
QX-SPB-10	10	10±1	8～12
QX-SPB-12	12	12±1	10～14
QX-SPB-14	14	14±2	12～18
QX-SPB-16	16	16±2	14～22
QX-SPB-18	18	18±2	16～24
QX-SPB-20	20	20±3	18～26
QX-SPB-22	22	22±3	20～28
QX-SPB-25	25	25±3	22～30
QX-SPB-30	30	30±4	24～35
QX-SPB-35	35	35±4	28～38
QX-SPB-40	40	40±4	30～45
QX-SPB-45	45	45±4	40～55
QX-SPB-50	50	50±5	45～65
QX-SPB-55	55	55±5	50～75
QX-SPB-60	60	60±5	55～80

Specia packages,sizes and colors can be supplied upon request

Package Customized

Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as

1. Boxed

2. PVC boxes

3. According to customer’s packaging requirements

No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.

Consult now

Why choose us

EKO & QX cable sleeve company is a manufacturer with independent development of cable management sleeves, whether you are a brand owner, retailer, and wholesaler, offline physical store, or online Amazon, AliExpress, and other platforms, we can provide one-stop cable sleeve customization services.

It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.

Click Here



Product Customized

We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.



Special technique

If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.



Logo customized

We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.



Service Advantage

With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
