Expandable aramid braided sleeve
- Intro:This is a expandable aramid braided sleeve with a self-wrapping design, providing reliable protection for cables
- Part No: QX-SMCA
- Material: Meta-aramid fiber
- Standard Color: Green
- Sizes: Diameter 2mm~50mm, special sizes can be customized
- Operating range: -55℃+240℃
- Flammability: UL94V-0
- Expansion raio: 1:2 or 1:3
- Feature: Flame retardant, waterproof, abrasion resistance, and oil resists
- MOQ: 1 Roll
PRODUCT DESCRIPTION
Expandable Meta-aramid braided sleeving is made using meta-aramid fiber, which features an outstanding heat resistance and high strength. This material will work normally in temperatures up to 240℃ for long periods of time. Our meta-aramid braided sleeving features a higher mechanical toughness, self-extinguishing, acid resistance, oil and alkali resistance, and lower density.
Expandable aramid braided sleeve will maintain its outstanding performance even under high temperature environments, damp or otherwise harsh conditions.
APPLICATION SCENARION
Our expandable meta-aramid braided sleeving finds wide use across aerospace, automotive, rail transit, industrial, electronics, and energy sectors. In aerospace, it safeguards wire harnesses in high-temperature/low-oxygen environments.
In automotive, it protects engine bay cables and insulates EV battery cables. In rail transit, it enables fire-safe cable bundling in passenger compartments and control cabinets. Industrially, it shields wires near furnaces, turbines, or welding lines.
In electronics and energy, it provides high-temperature board-level insulation and protects cables in solar, wind, and power distribution systems, playing a crucial role in extreme industrial conditions.
Color Customization
The standard color of our expandable aramid braided sleeve is green color available.
Specification
| Part No. | Size | Package | |||
| Flat width (mm) | Min Diameter (mm) | Max Diameter (mm) | Nominal Diameter (mm) | ||
| QX-SMCA-1/2-5 | 1 | 1 | 2 | 2 | 400m/roll |
| QX-SMCA-2/4-5 | 2 | 2 | 4 | 4 | 400m/roll |
| QX-SMCA-4/8-5 | 4 | 4 | 8 | 6 | 300m/roll |
| QX-SMCA-6/12-5 | 6 | 6 | 12 | 8 | 250m/roll |
| QX-SMCA-8/16-5 | 8 | 8 | 16 | 10 | 200m/roll |
| QX-SMCA-10/20-5 | 10 | 10 | 20 | 15 | 200m/roll |
| QX-SMCA-12/24-5 | 12 | 12 | 24 | 20 | 150m/roll |
| QX-SMCA-15/30-5 | 15 | 15 | 30 | 25 | 100m/roll |
| QX-SMCA-20/40-5 | 20 | 20 | 40 | 30 | 100m/roll |
| QX-SMCA-40/50-5 | 40 | 40 | 50 | 45 | 50m/roll |
| QX-SMCA-50/60-5 | 50 | 50 | 60 | 55 | 50m/roll |
- Specia packages,sizes and colors can be supplied upon request

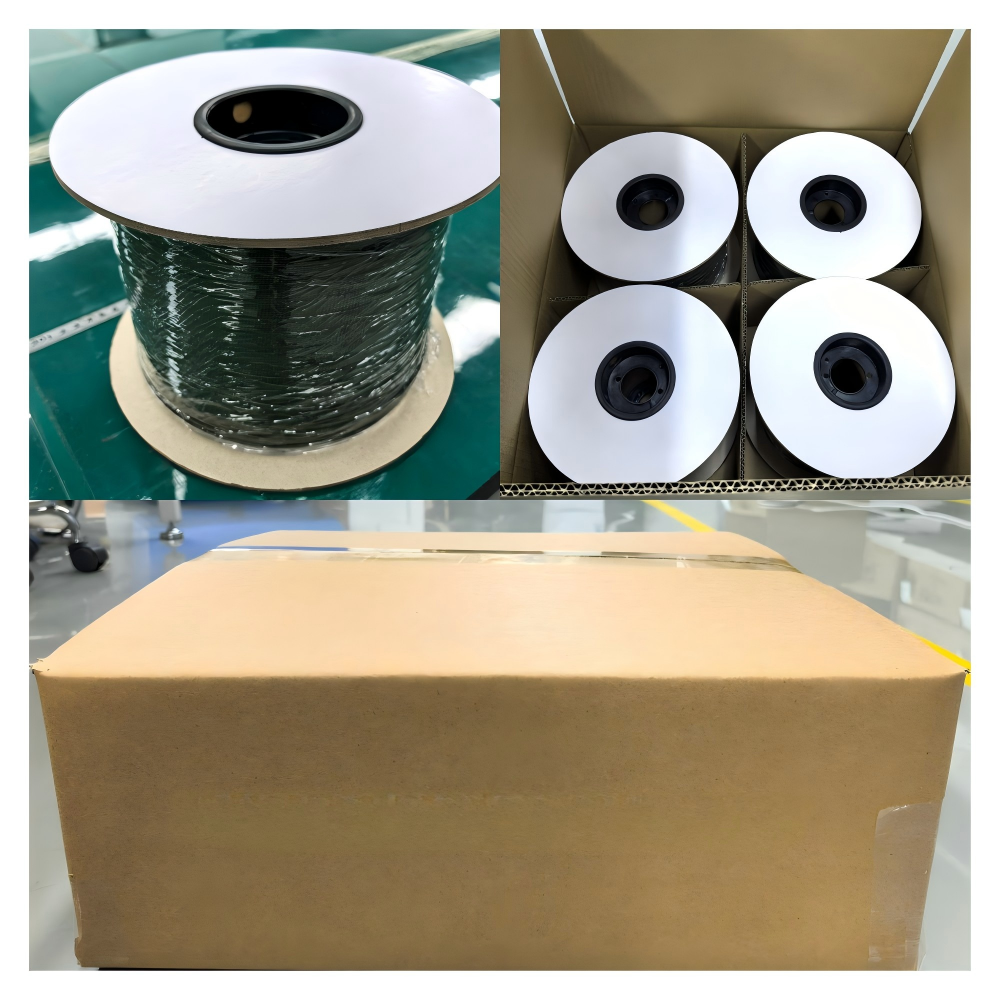

Package Customized
Our factory can provide customers with personalized packaging design customization services and provide a variety of packaging materials to choose from, such as
1. Boxed
2. PVC boxes
3. According to customer’s packaging requirements
No matter what the packaging, we can print the customer’s logo, product information, contact information, etc., on the outer packaging according to the customer’s needs.
Why choose us
It covers special customization, packaging customization, logo printing, etc. to meet the diversified needs of customers and provide the best solution.
Product Customized
We design and develop new products according to our customer’s style requirements and engineering needs.For example, we develop special PET and zipper cable management styles according to customer needs, etc.
Special technique
If the projects need special environments requirements, there are special process treatments that could be met, such as UV resistance, low-smoke halogen-free, flame retardant and so on.
Logo customized
We customize packaging with customer logos, product details, and specifications, facilitating easy identification and use upon delivery. This also aids customer promotion in local markets.
Service Advantage
With over 19 years of OEM and ODM expertise, we offer professional technical support and tailored solutions for cable sleeve needs.
FAQ
Do you support customization? What is included?
Yes. We provide customization services including:
1.Custom lengths, diameters, and colors
2.Material options such as flame-retardant, halogen-free or eco-friendly
3.Logo printing or private-label services
4.Custom packaging options (boxes, bags, labeling)
Do your products meet environmental and safety standards?
Yes, we offer material options that meet environmental and safety standards such as halogen-free, flame-retardant, UV-resistant, high-temperature resistance. We also hold and can provide relevant test and certification reports.
What after-sales service or return policy do you offer?
We provide full after-sales support. If a product defect occurs under proper use, please contact us quickly and provide photos or sample. Once verified, we will arrange for replacement, repair or refund as appropriate.
How do you ensure product quality?
We apply strict quality control at every stage—from raw material to finished product. We hold certifications such as ISO 9001, RoHS and REACH.
Do you provide samples?
Yes, we provide samples for clients to evaluate quality and specifications. Whether they are free depends on the case. Sample delivery time is usually faster than full orders. Please tell us your requirements and we’ll respond accordingly.
